Lift Light Curtains Panachrome
COMPLIANT WITH
Overview
The MEMCO Panachrome lift detector is ideal for high-traffic areas, e.g., hospitals, hotels, or airports. Patented red/green LED lights warn when the doors are closing, and sensors detect lift door blockage. Optional 3D sensors extend protection into the landing area.
Dense infra-red 154 beam light curtain
Red and green LEDs highlight door movement
2D and 3D detection models available
2D Coverage exceeds minimum requirements
Suitable for centre-opening and side-opening doors
External controller for quick configuration and diagnostics
Available in 10mm and 43mm profiles
Complies with EN81-70 legislation
Technical drawings

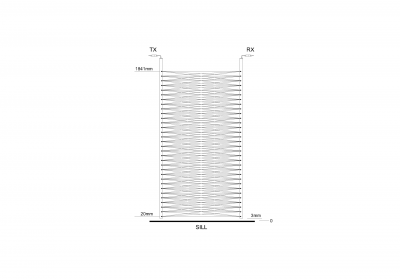

Panachrome 10mm beam pattern

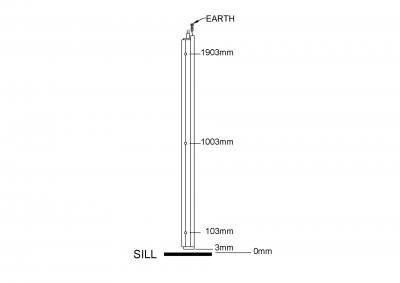

Panachrome 10mm Mounting

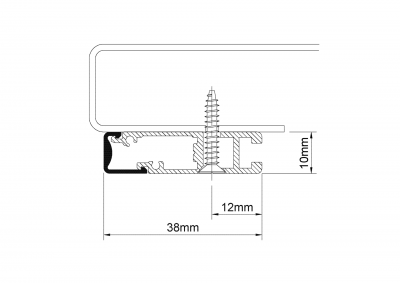

Panachrome 10mm Profile

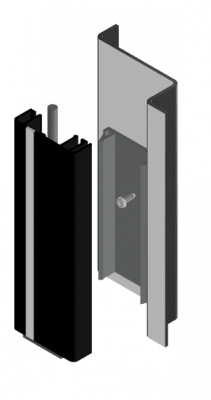

Panachrome 43mm 3D slampost

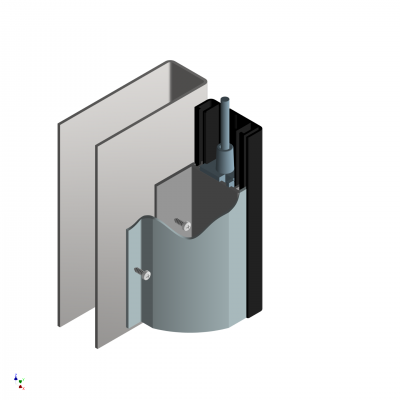

Panachrome 43mm Centre Opening

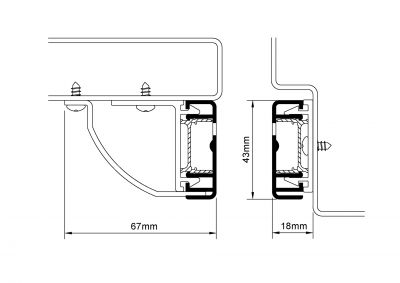

Panachrome 43mm profile side opening
Files and Resources
Panachrome 10mm Installation Guide (English)
Install Guides
Panachrome 43mm Installation Guide (English)
Install Guides
Panachrome Universal Controller Installation Guide (English)
Install Guides
