Lift Light Curtains Smart 3D
COMPLIANT WITH
Overview
The MEMCO Smart 3D lift detector for Panachrome+ lift curtains is an innovative product that resolves common problems with 3D edges technology, reducing the false triggers caused by reflected light or flooring, stationary objects, dark clothing, and cross traffic.
Patent pending Full passenger protection when combined with Panachrome+ 2D light curtains Reduces false 3D triggers with microwave radar technology Ignores cross-traffic of people moving past the lift Detects objects/people moving towards the lift Not affected by ambient light and reflective surfaces Surface mount options available Suitable for centre-opening and side-opening doors
Smart 3D Sensor
Mounting height: 1.8-2.8m .
Transmitter frequency: 24.150 GHz .
Transmitter power density: <5mW/cm2 . Minimum detection range (from door face) 200mm to 500mm . Detection width 1.4m side opening and 1.8m centre opening .
Detection mode Motion: Min detection speed 20 cm/s .
Operating distance: With door separations > 30cm (adjustable on Panachrome+)
Panachrome+ Detectors G2540 (2D) G2510 (2D)
Detector Dimensions: 43mm x 16mm x 2005mm / 10mm x 33mm x 2000mm
Number of Diodes: 48
Number of Beams: 234
Ext. Cables: 015 455 Length 4m
Detector monitoring height (min): 20mm
Detector monitoring height (max): 1800mm
Range: – 2D 6m
Maximum voltage in Detector: 12VDC
Maximum power consumption: 6W
Operating temperature range: -10°C to +65°C
EMC Compliance Emissions to EN: 12015:2014
Ingress Rating: IP65
Light Immunity Rating: >100,000lux
Panachrome+ Controller Specifications
Controller dimensions: 239mm x 172mm x 51mm
Voltage requirements: Universal AC supply 85 to 240VAC or 15 to 48VDC
Power consumption: 30W maximum with detectors fitted and indicators ON
Door operator relay: 250V AC, 24V DC at 5A
Trigger Duration: 350mS typical 2D, 1 second typical 3D
Timeout: Switched ON/OFF 10-70 seconds adjustable

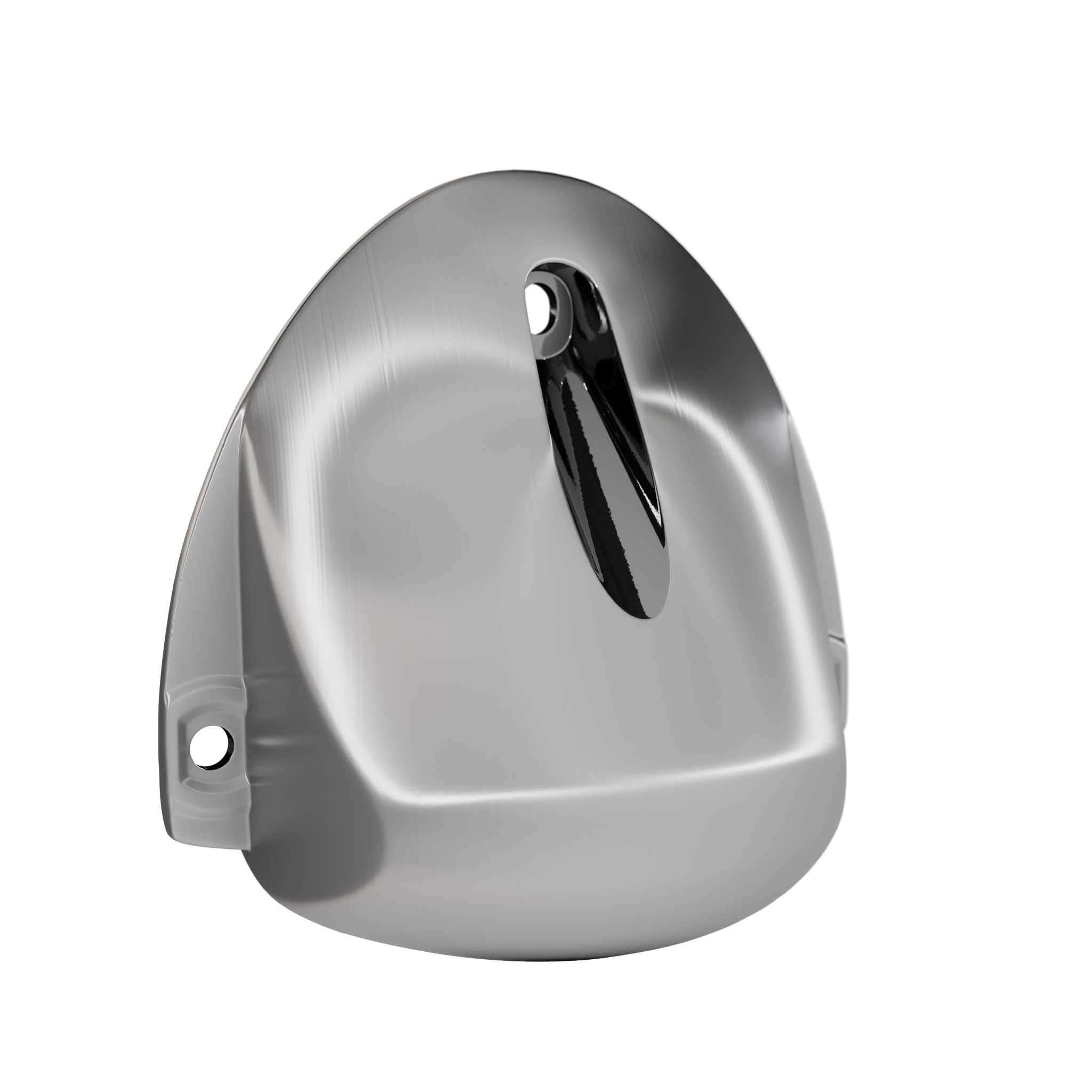

SMART-3DS-S-01-000: Smart 3D, Surface Mount, Stainless Colour .
G2540 000: Set of 2D TX, RX Detectors and Fixing Kit 43mm
G2510 000: Set of 2D TX, RX Detectors and Fixing Kit 10mm
G2510 803: Clamp kit to fit one detector
G3851 000-NA: Panachrome+ Controller
015 455: 4m extension cable to fit one detector
