Lift Light Curtains E-Series
COMPLIANT WITH
Overview
10mm Profile E10 36
External Dimensions: 10mm x 33.5mm x 2005mm (E10) / 32mm x 16mm x 2105mm (E32) / 40mm x 19mm x 2105mm (E40)
No. of Diodes: 36
Total No. of Beams at a separation: of 174 Beams >500mm / 106 Beams<500mm &>200mm / 36 Beams <200mm
Top Diode position from sill*: 1633mm
Bottom Diode position from sill*: 25mm
IP Rating: IP65 (E10), IP54 (E32), IP54 (E40)
Maximum Range: 3m Max.
Response Time 100ms
Light Immunity >100,000 lux
Input Voltage +11VDC – +42VDC Continuous 44VDC [Max] Peak
Trigger Output Maximum Switching Voltage=45VDC/30VAC / Maximum Switching Current=350 mA / Maximum on State Resistance=2 Ohms / NPN,PNP,NC,NO user configurable
Diagnostic Output (optional) Maximum Switching Voltage=45VDC/30VAC / Maximum Switching Current=350 mA / Maximum on State Resistance=2 Ohms / NPN,PNP user configurable; NC only
Current Average <100mA
Peak Current <100mA
Operating Temp. Range -10°C – 60°C as per BS2011 Part2.1 Ab & Part2.2 Bb
Storage Temperature -25°C to 60°C
EMC Emissions EN12015:2014 Immunity 12016:2013
Random Vibration 20-500Hz 0.002g2/Hz, 4 hours per axis
Sinusoidal Vibration 30Hz 3.6g RMS 30mins per axis
Humidity 93% BS60068-2-30:2005:Part2.1Db:1981, Variant2 @ 55°C
Cables TX=2 Cores & RX= 5 Cores (7 Cores with diagnostic output), Length=2.7
E10 894: Set of E10 Extension cables E10 802 Static kit, aluminium support bracket
E10 803: Clamp plate kit (per detector

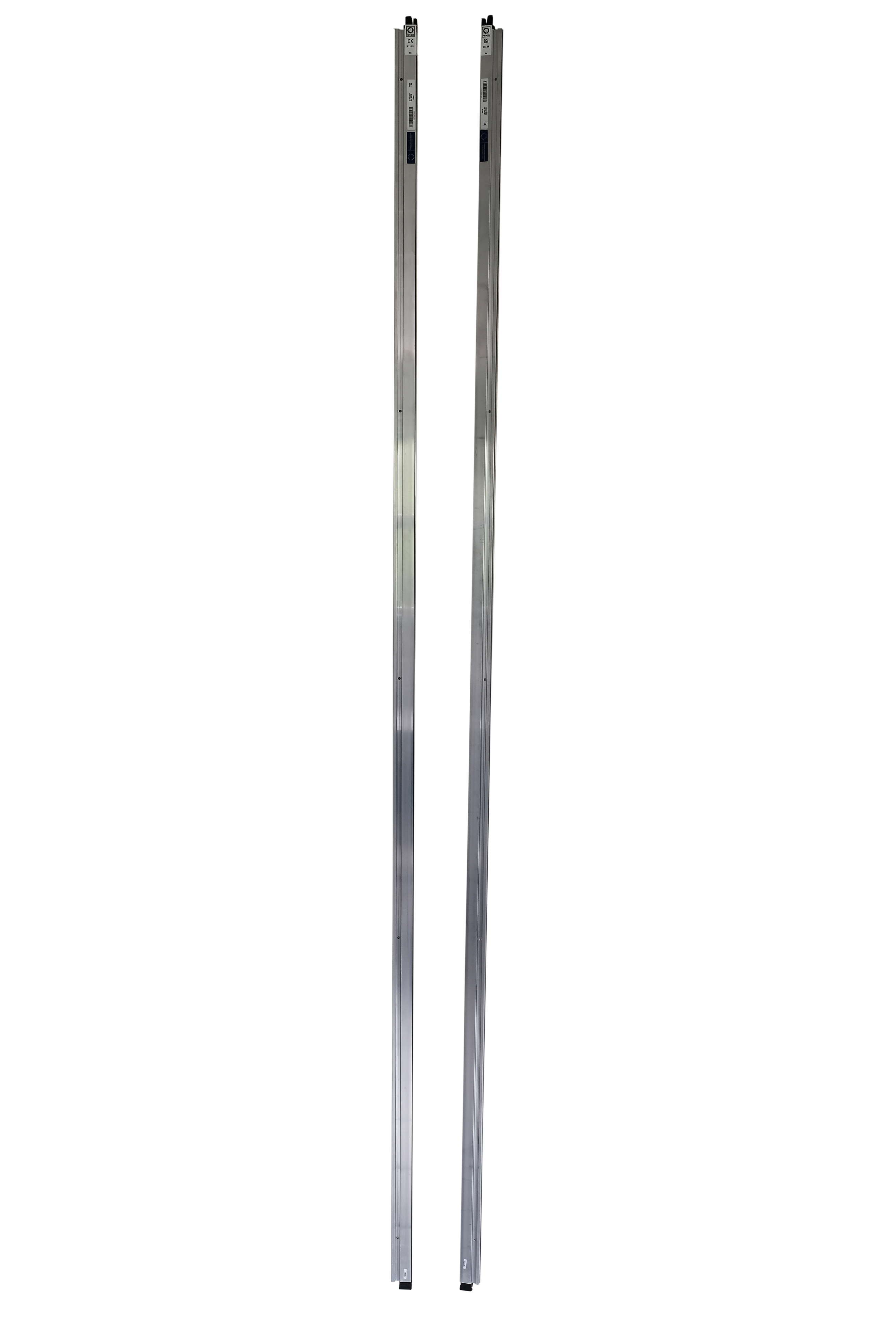

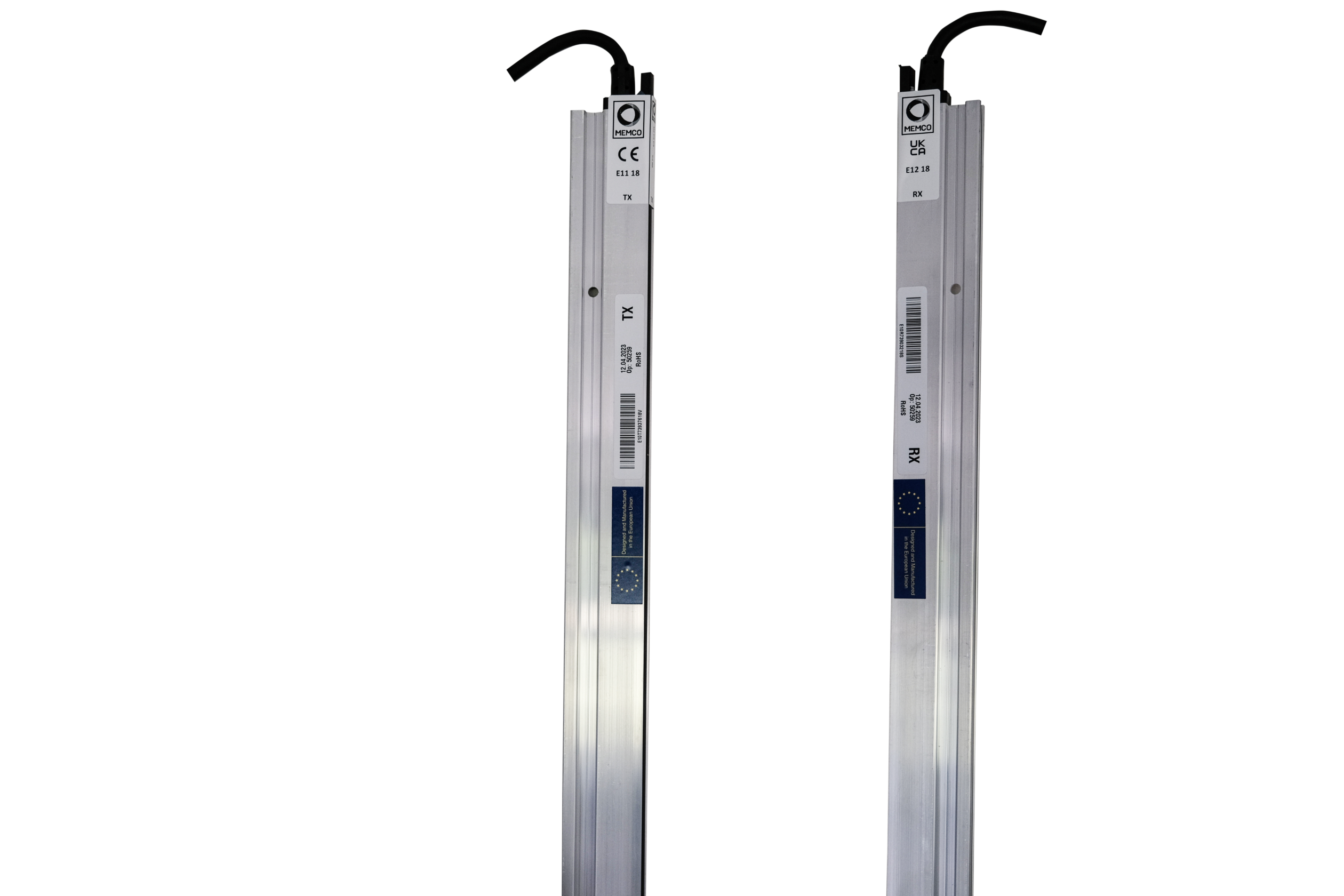

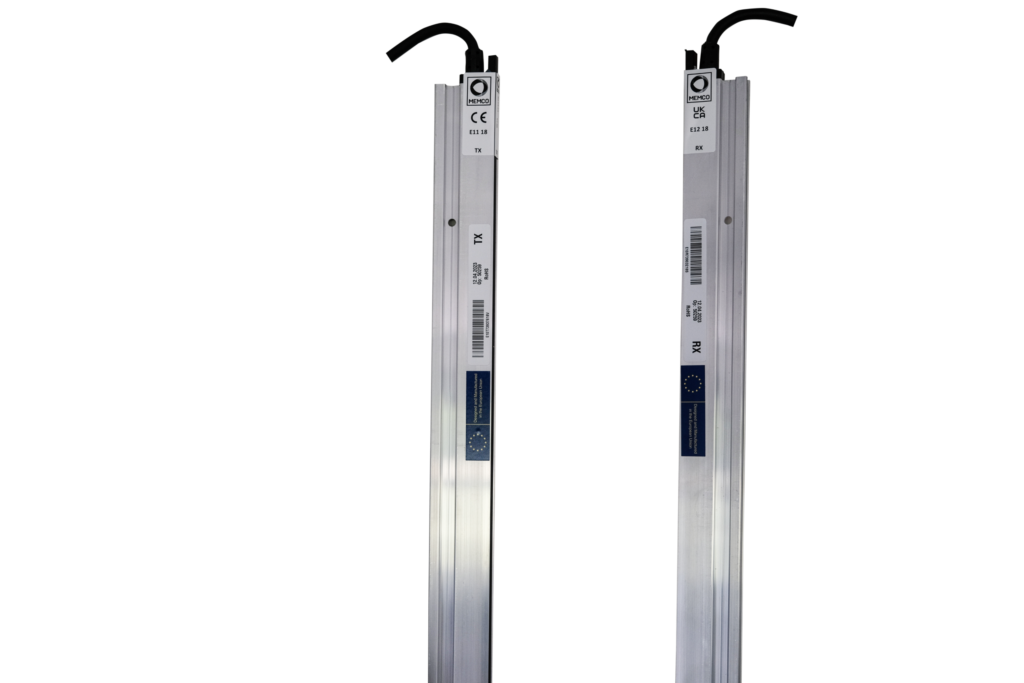

The E-Series Lift Light Curtains is our entry-level lift door detector that fulfills all basic compliance requirements. It is easily and quickly integrated into door leading edges of existing or new lifts to prevent passenger accidents and door damage.
174 criss-cross beams
Designed for new & existing installations
Suitable for dynamic or static installations
Reduced installation time
No setting up required
No communication wire
No configuration needed
Extended range of input voltages 11- 42VDC to suit all applications
Robust Electronics
Timeout Software Diagnostic
LEDs Diagnostic output
Technical drawings

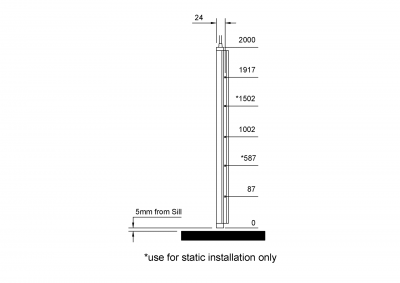

E10 Fixing Holes
Files and Resources
E-Series EN81-20 Datasheet (English)
Datasheets
E10 Installation Guide (Multilanguage)
Install Guides
