Memcom+ Lift Emergency Phone
COMPLIANT WITH
Overview
The Memcom+ lift emergency phone is a high-quality, and reliable autodialler that provides trapped passengers quick and easy access to emergency assistance. The unit has a speaker, microphone, and backlit LCD for programming and status updates.
Emergency telephones and intercom systems for engineers, fully compliant with regulations
Connection to the Multi Point Station (MPS)
Backlit LCD display for programming and status indication
Easy programming
Connect up to 8 MEMCOM devices to a single telephone line
Supports up to 4 emergency call numbers and 2 technical alert numbers
Connection to the AVIRE HUB enables technical alarm management, test calls, and remote programming of installed units
- Power Supply 220 – 240 VACw
- Consumption 1.8 to 10 VA
- Internal Battery 12V, 600 mAh, 9 hr
- Connections CAN, RJ-11, RS-232 or RS-422/485
- Networks 2G, 4G
- Op. Temp. -40 to +85 oC
- Dimensions 210 x 110 x 65 mm
System
- 492 021: Memcom Multi Point Station (MPS)
- 451 000: Inductive loop (EN81-70 compliance)
Digital Connectivity
- AC-2CM10-100-F-20-000: 2G DCP (Digital Communication Platform). Contact our team for all DCP options available.
- AC-4CM10-610-F-20-000: 4G DCP (Digital Communication Platform). Contact our team for all DCP options available.
- MC-SMM00-110-0-00-EU0: Sim Card – Two Year
- MC-SMM00-111-0-00-EU0: Sim Card – Three Year
- AC-ASM00-100-F-00-000: CAN Bus Splitter

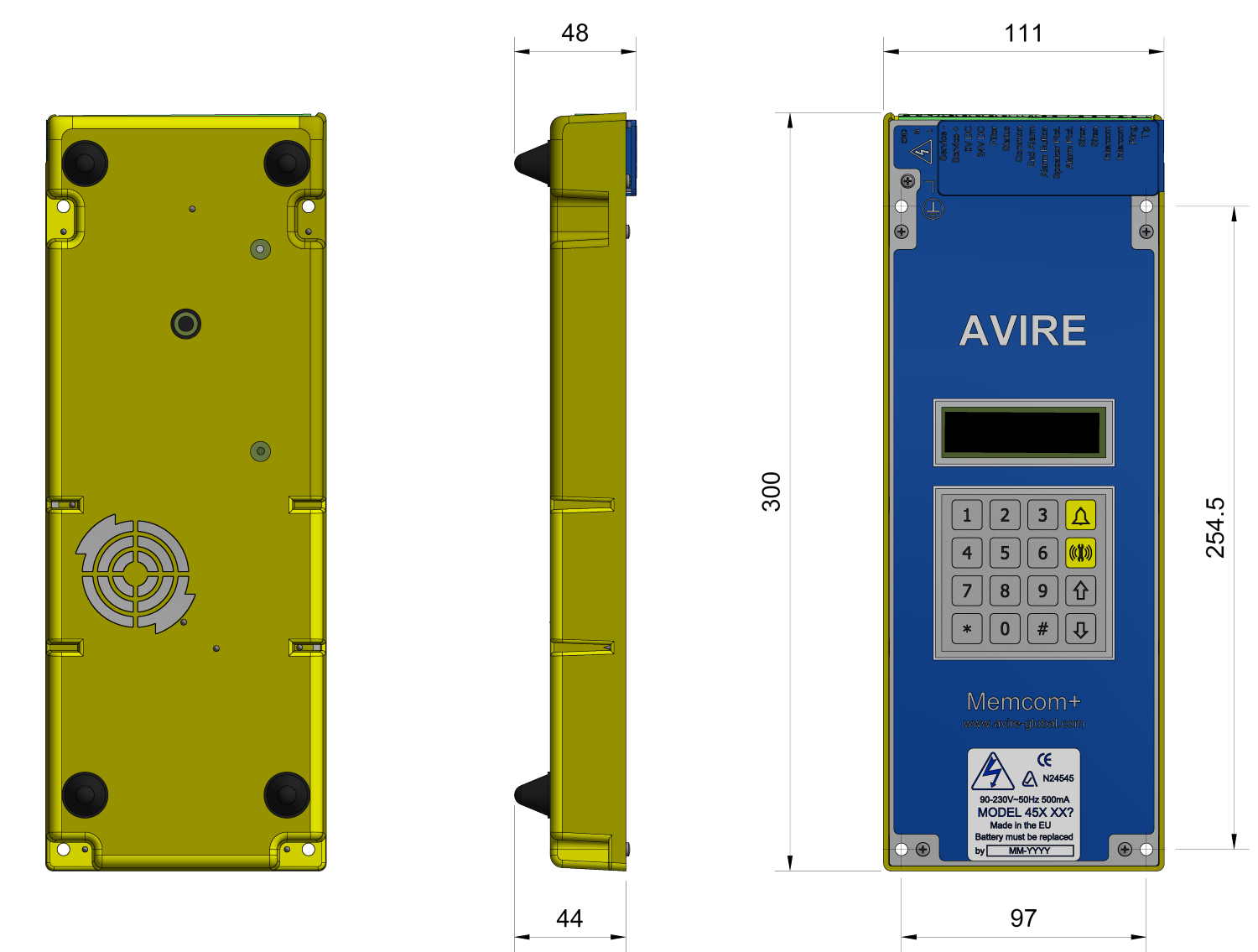

Technical drawings
Memcom+ Lift Emergency Phone
Files and Resources
Memcom and Accessories Information Sheet (English)
Datasheets
Memcom Installation Guide
Install Guides
Declaration of Conformity Memcom+ Emergency Telephone
Certifications
