Addressable SmartCommand System

BOSS Controllers

Compliant with

ADA IBC NFPA 72 UL 2525 NFPA 101

See code information

Overview

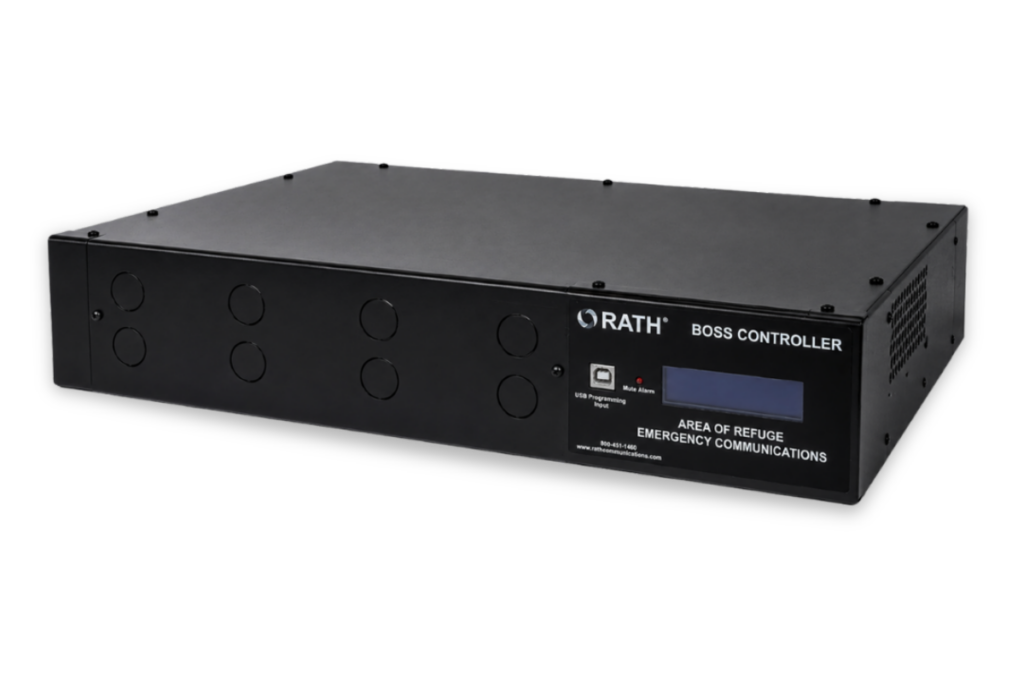

RATH® BOSS Controllers serve as the central intelligence of the Addressable SmartCommand System, managing emergency communication between addressable call boxes, emergency phone lines, and monitoring devices. Designed for applications ranging from small buildings to large multi-floor facilities, the BOSS Controller provides centralized programming, system supervision, and dependable communication for code-compliant emergency communication systems.

Available in multiple capacities and wiring configurations, the BOSS Controller portfolio supports up to 128 addressable call boxes with scalable system layouts to meet a wide range of project requirements. Built-in supervision continuously monitors power, telephone lines, and communication loops, while over-the-wire firmware updates and flexible mounting options simplify installation, maintenance, and future system expansion.

Centralized System Control

Controls and manages Addressable SmartCommand Systems.
Supports up to 128 addressable call boxes, depending on model.
Centralized programming simplifies system configuration.
Scales from small to large emergency communication systems.

System Supervision

Continuously monitors primary and backup power.
Supervises telephone line and communication loop integrity.
Relay outputs support external system monitoring.
Opto-isolated input enables external system integration.

Installation & Maintenance

Supports daisy-chain system architecture.
Over-the-wire firmware updates simplify maintenance.
USB programming port enables local configuration.
Surface, wall, or 19-inch rack mounting supported.

System Flexibility

Available in 32-, 64-, and 128-call box capacities.
Offered in both Class A and Class B wiring configurations.
Supports one to four communication loops, depending on model.
Compatible with RATH® 3100 Battery Backup Units.

Product Variants

BOS 3400	BOSS 3400A	BOSS 3400-64A	BOSS 3400-128
32 Call Box Max, Class B Wiring	32 Call Box Max, Class A Wiring	64 Call Box Max, Class A Wiring	128 Call Box Max, Class B Wiring

Files and Resources

All Data Sheets Install Guides Software Specifications Wiring Diagrams

Datasheet_SmartCommand_BOSS 3400

Data Sheets

Datasheet_SmartCommand_BOSS 3400A

Data Sheets

Datasheet_SmartCommand_BOSS 3400-64A

Data Sheets

Datasheet_SmartCommand_BOSS 3400-128

Data Sheets

Installation Manual_SmartCommand

Install Guides

SmartCommand Typical System Wiring Diagram

Wiring Diagrams

SmartCommand Engineering Specifications

Specifications

AOR Configuration Software 1.0.11.0

Software
