Deatil of Emergency Call Boxes
Rath
Analog SmartRescue System

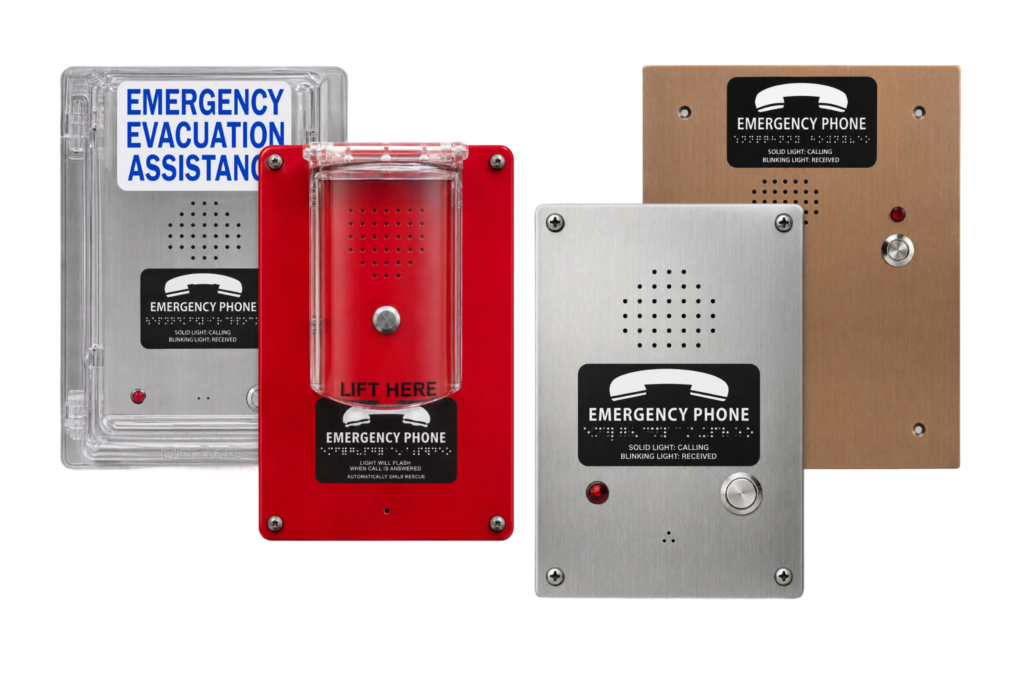

SmartRescue Emergency Call Boxes

Compliant with
Overview
RATH® SmartRescue Emergency Call Boxes provide reliable emergency communication for Areas of Refuge and other assisted rescue locations. Designed to connect directly to the SmartRescue Base Station, these call boxes enable individuals to quickly establish communication with building personnel or emergency responders during an emergency event.

Available in flush mount, surface mount, and exterior-rated configurations, the call box portfolio supports a wide range of installation environments and project requirements. Built-in battery backup, location messaging, communication supervision, and analog home-run architecture help simplify system design while supporting dependable operation and faster response during emergency situations. The system supports up to 10 call boxes on a single phone line and is designed to meet applicable accessibility and life safety code requirements.

Communication & Response

  • Provides two-way emergency communication between occupants and responders.
  • Recordable location messaging helps identify the call location.
  • Communication verification and line monitoring support system reliability.
  • Designed for use with Analog SmartRescue System Base Stations.

System Architecture

  • Analog home-run architecture simplifies system design.
  • Supports up to 10 call boxes on a single phone line.
  • Compatible with centralized emergency communication systems.
  • Designed for scalable Areas of Refuge communication installations.

Reliability & Supervision

  • Built-in battery backup maintains communication during power loss.
  • Communication failure relay output supports system monitoring.
  • Continuous supervision helps identify communication faults.
  • Optional strobe interface and relay support additional notification requirements.

Installation Flexibility

  • Designed for new construction and retrofit installations.
  • Available in flush mount, surface mount, and exterior-rated configurations.
  • Supports interior and outdoor applications.
  • Multiple enclosure styles and button options accommodate different project requirements.

Product Variants

2100-956 Series (Surface Mount)

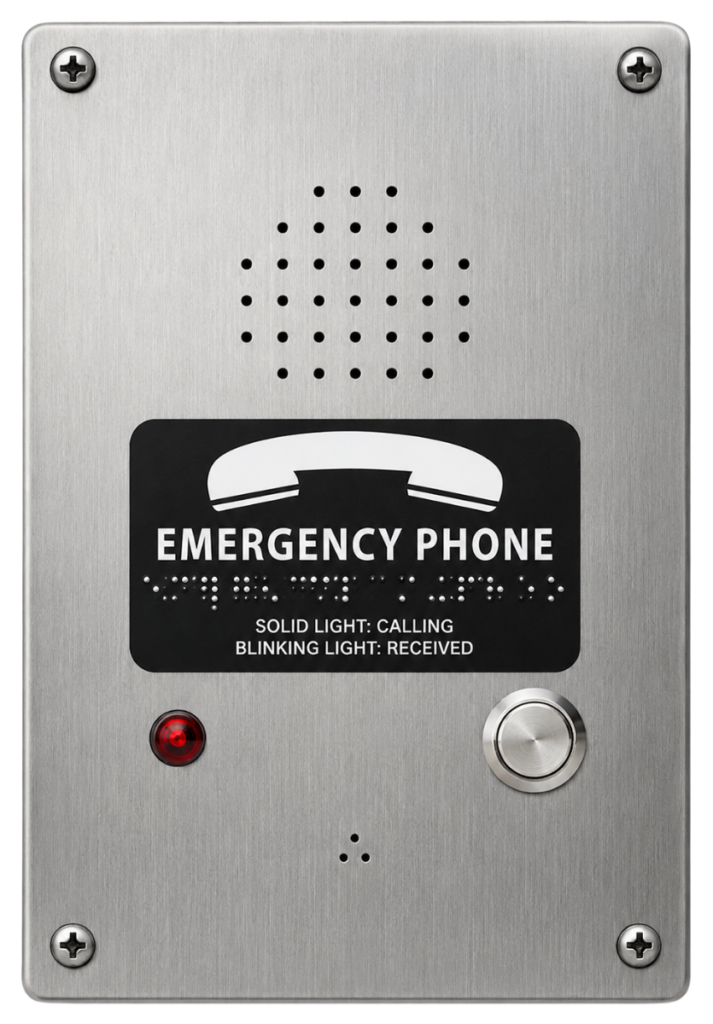

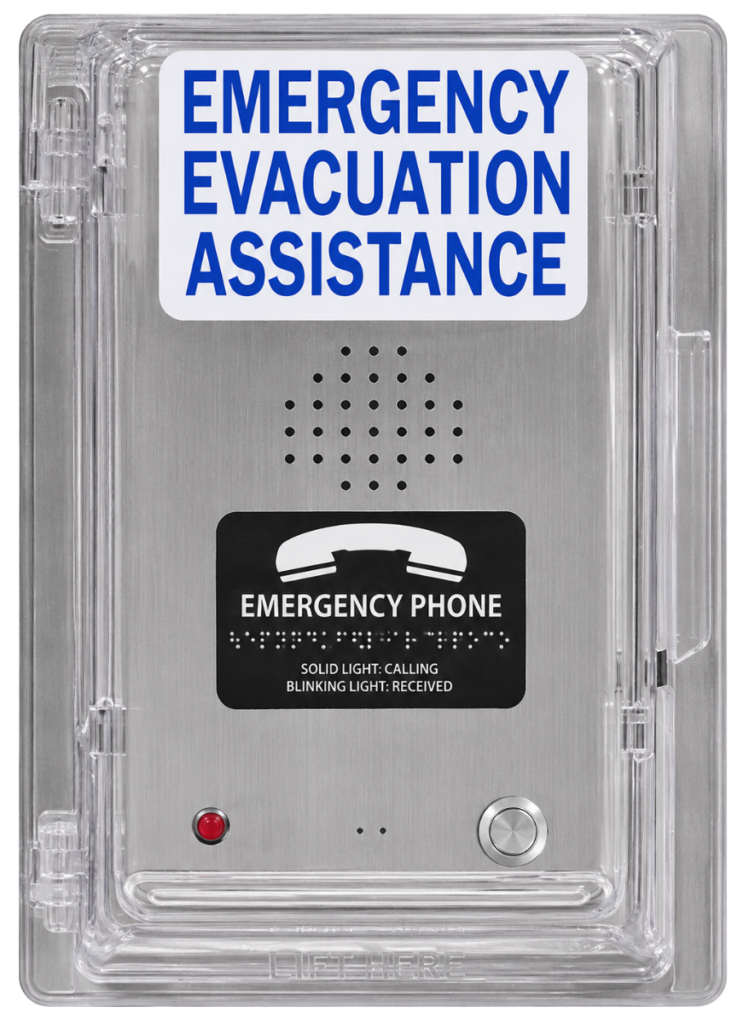

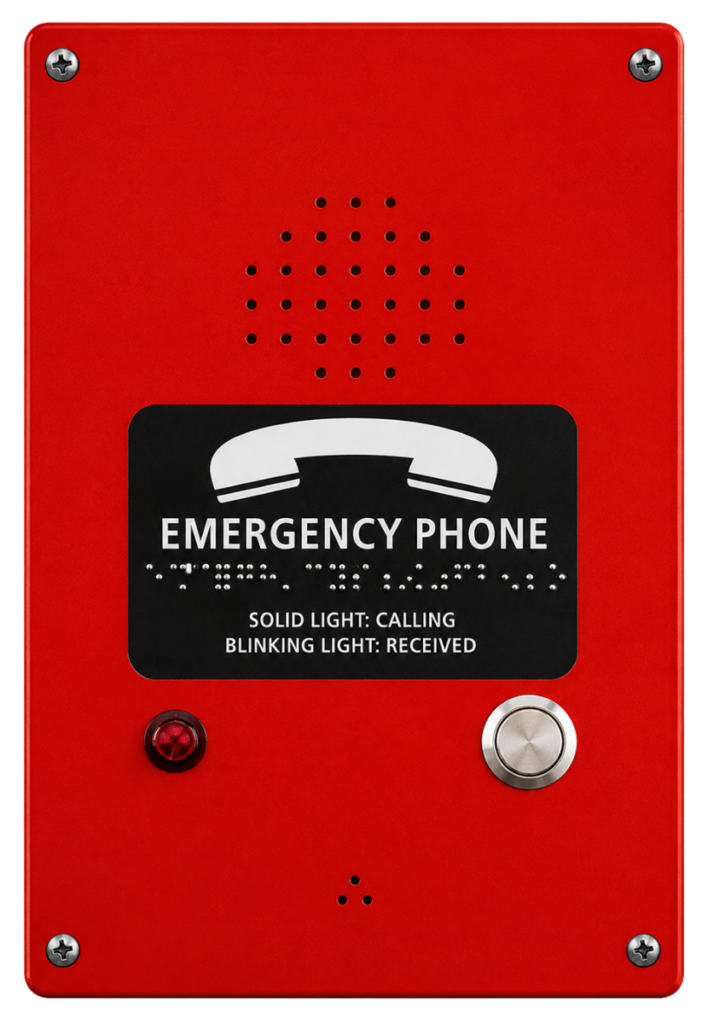

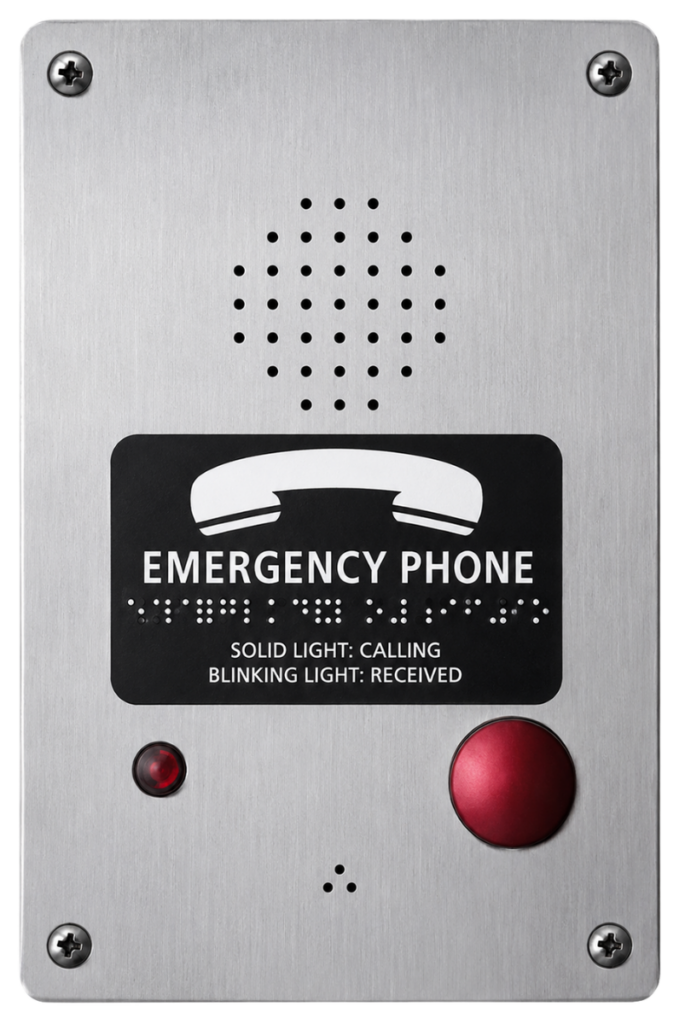

2100-956SR2100-956SRM2100-956RR2100-956SSRC2
Stainless SteelStainless Steel
with Mushroom Button
Red Poweder-CoatedStainless Steel
with Cover
2100-956SR2100-956SRM2100-956RR2100-956SSRC2

2100-958 Series (Flush Mount)

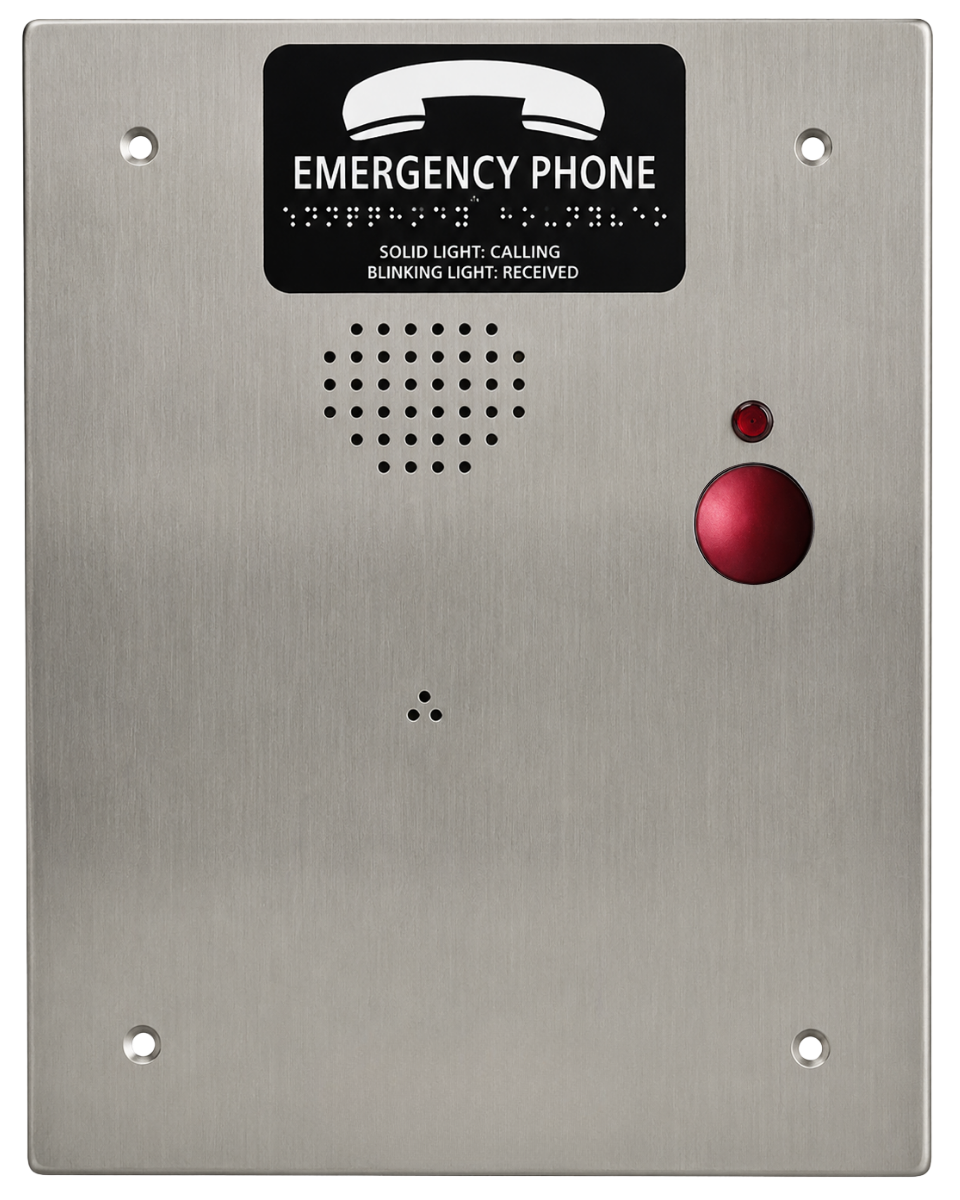

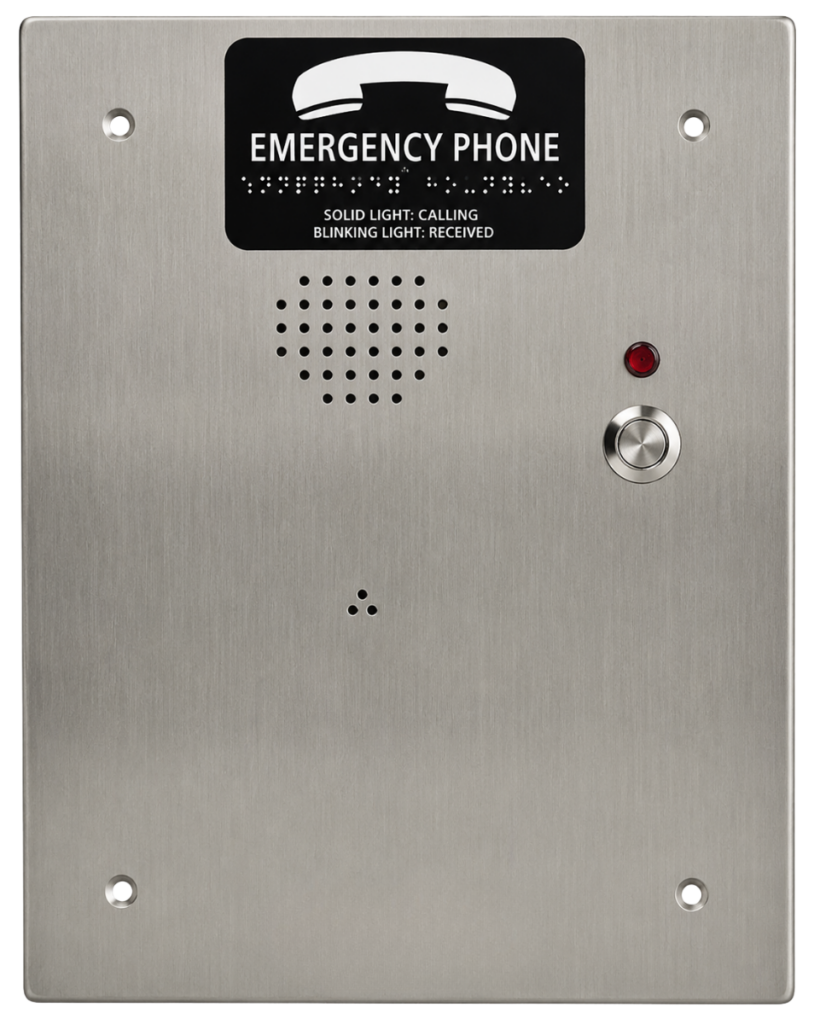

2100-958NSR2100-958NSRM2100-958NMBR2100-958SSRC2
Stainless SteelStainless Steel
with Mushroom Button

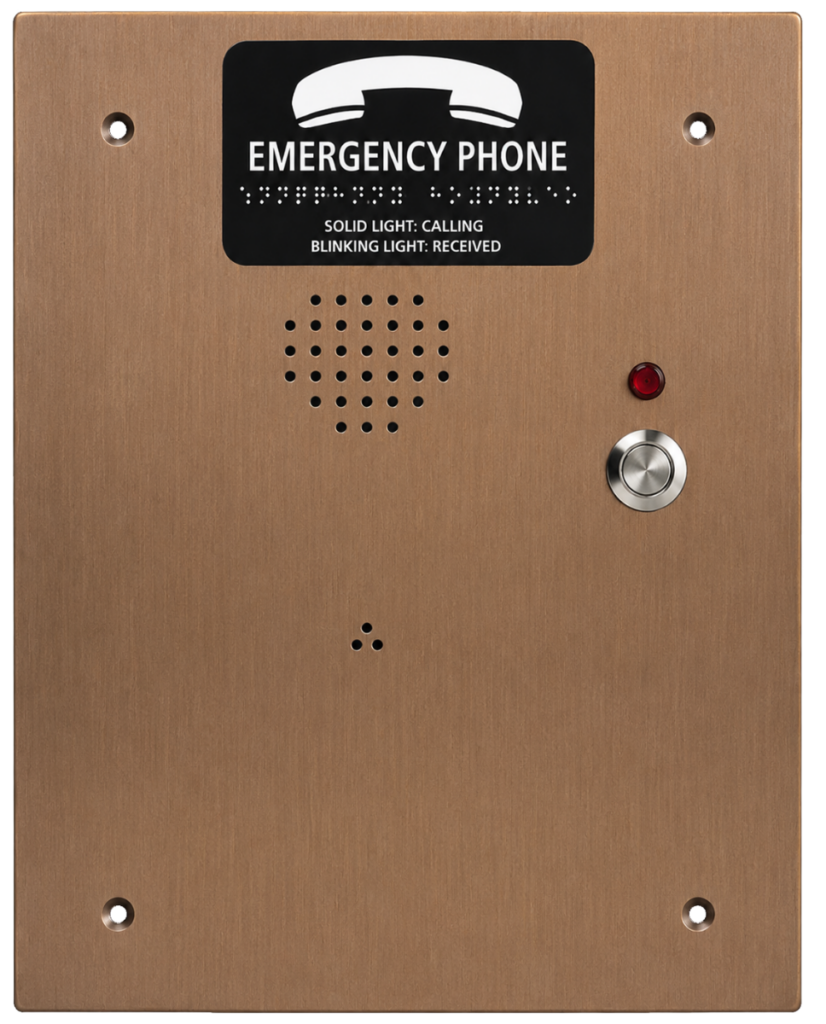

Antique BronzeStainless Steel
with Cover
2100-958NSR2100-958NSRM2100-958NMBRImage of 2100-958SSRC2 Product

2100-984 Series (Exterior Rated)

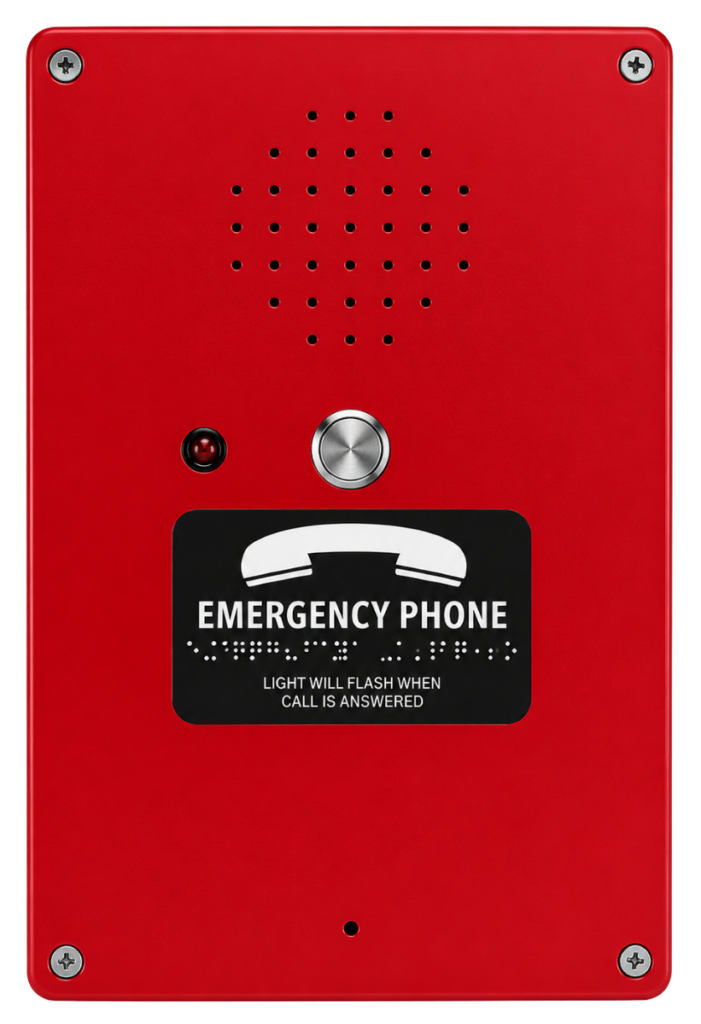

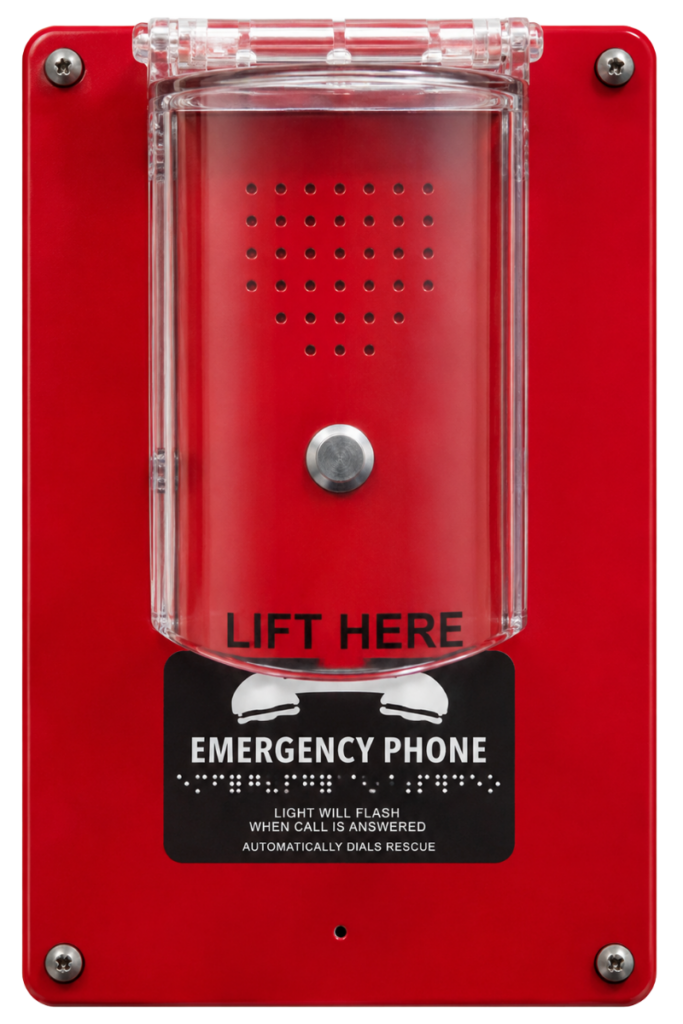

2100-984LR2100-984LRC1
Red FiberglassRed Fiberglass
with Cover
2100-984LR2100-984LRC1

Files and Resources

Datasheet_Analog SmartRescue System_2100-956 Series
Data Sheets
Download
Datasheet_Analog SmartRescue System_2100-958 Series
Data Sheets
Download
Datasheet_Analog SmartRescue System_2100-984 Series
Data Sheets
Download
Area of Refuge Signage Specifications
Specifications
Download
Area of Rescue Signage Specifications
Specifications
Download
Elevator Landing Signage Specifications
Specifications
Download
Area of Refuge Mounting Guide
Install Guides
Download
SmartRescue Call Box Detailed Programming RP8200910 Instruction Manual
Install Guides
Download
Flush-Mount Call Box with Cover 2100-958SSRC2 CAD Drawing
Specifications
Download
Flush-Mount Call Box 2100-958NSR CAD Drawing
Specifications
Download
Surface-Mount NEMA-Exterior Rated Call Box with Cover 2100-984LRC1 CAD Drawing
Specifications
Download
Surface-Mount Call Box with Cover 2100-956SSRC2 CAD Drawing
Specifications
Download
Surface-Mount NEMA-Exterior Rated Call Box 2100-984LR CAD Drawing
Specifications
Download
Surface-Mount Call Box 2100-956 CAD Drawing
Specifications
Download
SmartRescue 5 and 10 RP8500510 Installation Manual
Install Guides
Download
SmartRescue System Supervision Wiring Diagram
Wiring Diagrams
Download
SmartRescue Engineering Specifications
Specifications
Download
