Analog Command Center System

Analog Command Center Supervision

Compliant with

NFPA 72

See code information

Overview

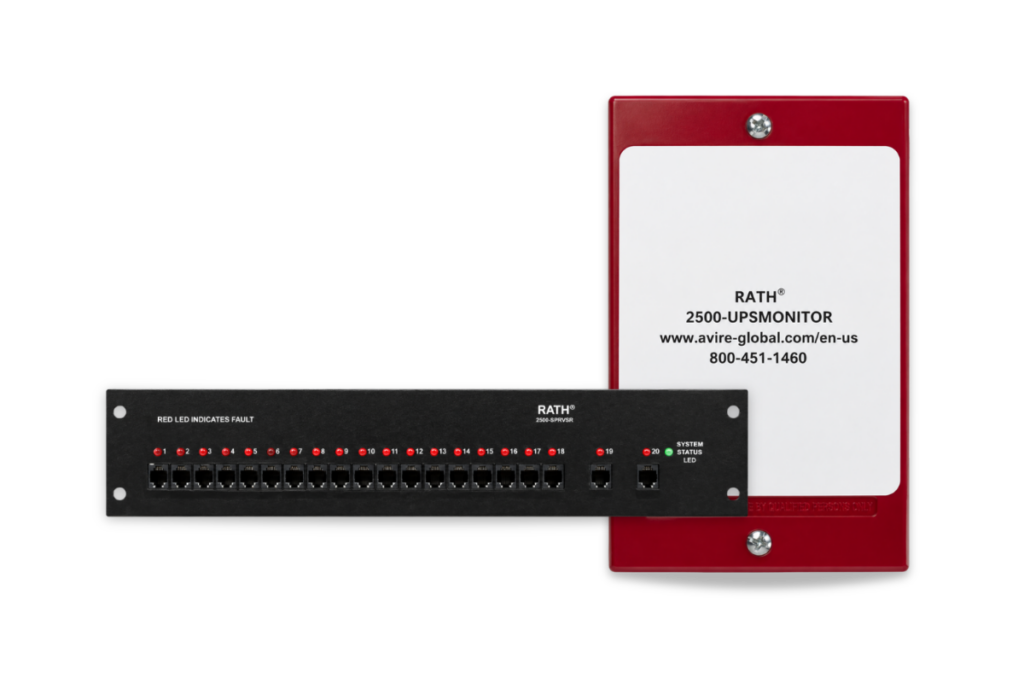

RATH® Analog Command Center Supervision products provide continuous monitoring of critical communication pathways and power throughout the Analog Command Center System. By monitoring remote call boxes, phone lines, and system power, these supervisory modules help detect failures and provide notification when a monitored component or power source is lost.

The 2500-SPRVSR provides communication pathway supervision for systems with up to 116 zones, while the 2500-UPSMONITOR provides power supervision throughout the system. Relay outputs allow integration with external systems, helping provide comprehensive supervision of the emergency communication system and support NFPA 72 360° supervision requirements.

Communication Supervision

Monitors remote call boxes and phone lines.
Detects communication failures.
Connects directly to 2400 Series call boxes.
Supports systems with up to 116 zones.

Power Supervision

Monitors power throughout the communication system.
Detects power loss and triggers a relay output.
Red LED provides visual status indication.
Provides continuous monitoring of system power.

System Integration

Relay outputs support integration with external systems.
2500-SPRVSR can integrate with fire alarm systems.
Dry contacts on the 2500-UPSMONITOR support external system connections.
Designed specifically for the Analog Command Center System.

Scalable Supervision

2500-SPRVSR configurations support 12 to 116 zones.
Multiple supervisory module sizes accommodate different system capacities.
2500-UPSMONITOR is included with the 2500-SPRVSR unless otherwise specified.
Supports supervision across a range of Analog Command Center configurations.

Flexible Installation

Wall-mounted 2500-SPRVSR uses a swing-out bracket.
Multiple power options available for the 2500-SPRVSR.
Compact 2500-UPSMONITOR supports multiple mounting options.
Flexible connections simplify integration with system components.

Product Variants

2500-SPRVSR	2500-UPSMONITOR
Supervisory Module	Power Supervisory Module

Files and Resources

Datasheet_Analog Command Center_2500-SPRVSR

Data Sheets

Datasheet_Analog Command Center_2500-UPSMONITOR

Data Sheets
