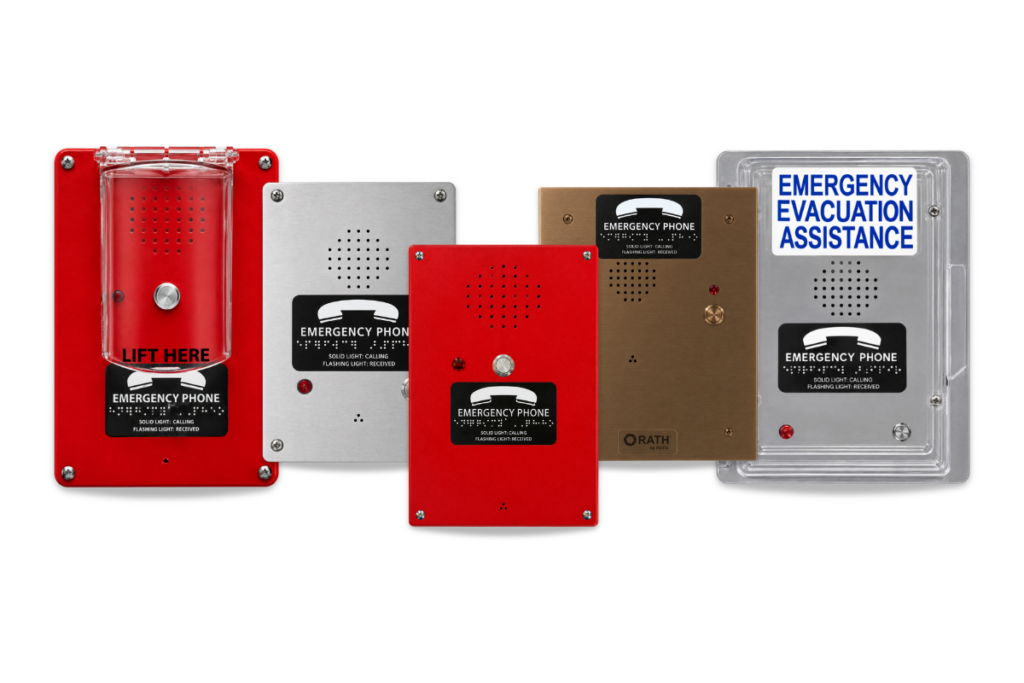

Image of 2400 Series Emergency Call Boxes
Rath
Analog Command Center System

2400 Series Emergency Call Boxes

Compliant with
ADA IBC NFPA 72
See code information
Request Quote
Tech support
close
Overview
RATH® 2400 Series Emergency Call Boxes provide hands-free, two-way voice communication between building occupants and designated personnel during an emergency. Designed for use with the Analog Command Center System, each call box features a recordable location message to identify the caller’s location and home-run wiring for a dedicated connection to a 2500 Series Command Center.

Available in flush mount, surface mount, and exterior-rated configurations, this call box portfolio provides options for a variety of building environments and installation requirements. Multiple button styles, enclosure finishes, and protective cover options provide additional flexibility, while communication and wire integrity can be supervised when paired with the RATH® 2500-SPRVSR.

Emergency Communication

  • Hands-free, two-way voice communication.
  • Automatic answer with audible ring.
  • Designed for direct communication with the 2500 Series Analog Command Center.
  • Provides dependable communication during an emergency.

Location Identification

  • 25-second recordable location message.
  • Identifies the caller’s location for responding personnel.
  • Programmed on-site for the specific installation.
  • Supports clear identification across multi-location systems.

Installation Flexibility

  • Available in flush mount and surface mount configurations.
  • Exterior-rated models available for exposed locations.
  • Multiple button and enclosure configurations available.
  • Protective cover options available on select models.

System Integration

  • Powered by the RATH® 2500 Distribution Module.
  • Home-run wiring provides a dedicated system connection.
  • Supports wiring distances up to 6,200 feet with 22 AWG.
  • Uses a single pair of 22–24 AWG wiring.

System Integration

  • Supports wire integrity supervision.
  • Supports communication supervision.
  • Supervision available when paired with the RATH® 2500-SPRVSR.
  • Helps maintain visibility into emergency communication system status.

Available Models

Flush Mount

2400-808NSPM2400-808NSP2400-808NMP2400-808SSPC2
Stainless Steel,
Mushroom Button,
No Cover		Stainless Steel,
Standard  Button,
No Cover		Antique Bronze,
Standard  Button,
No Cover		Stainless Steel,
Standard  Button,
Protective Cover

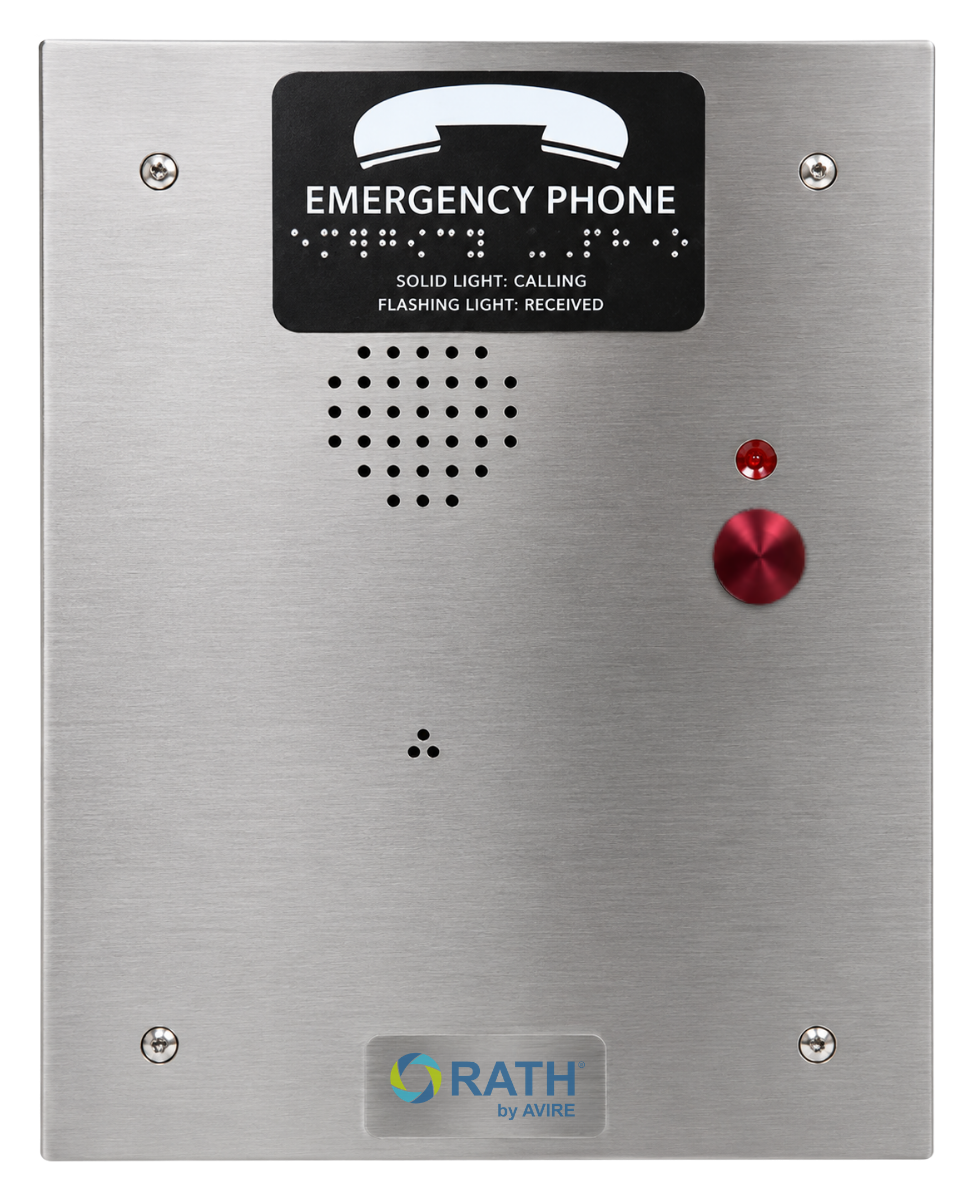

Image of 2400-808NSPM

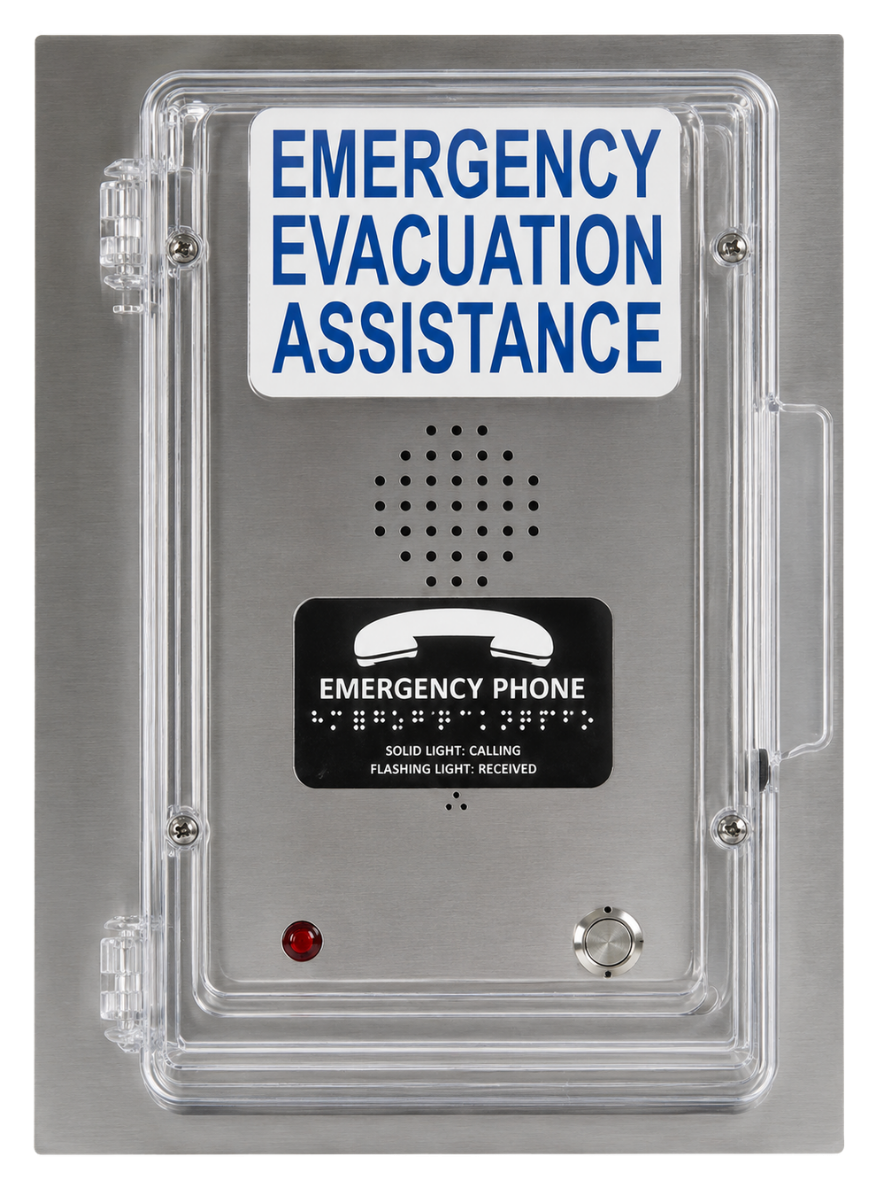

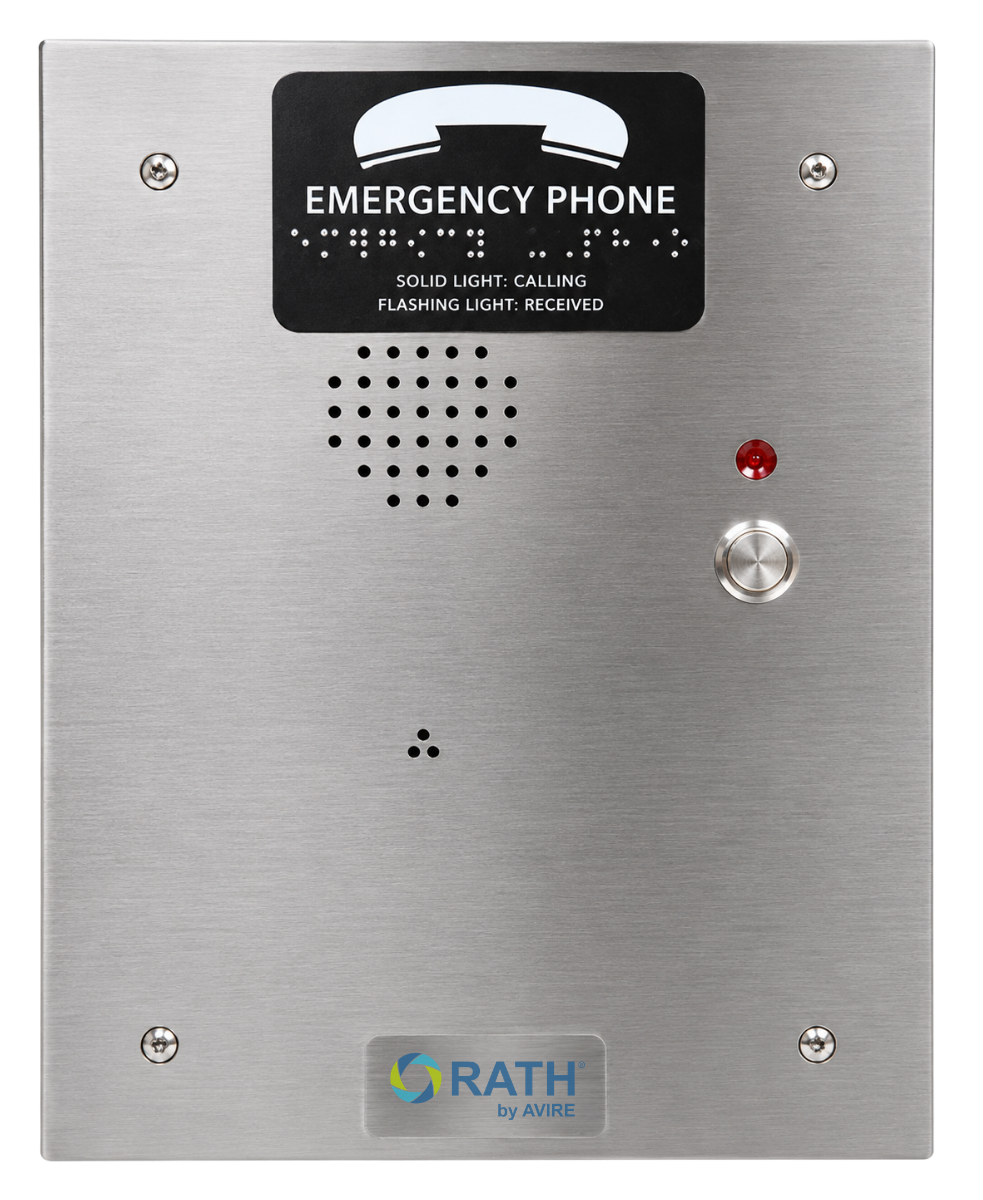

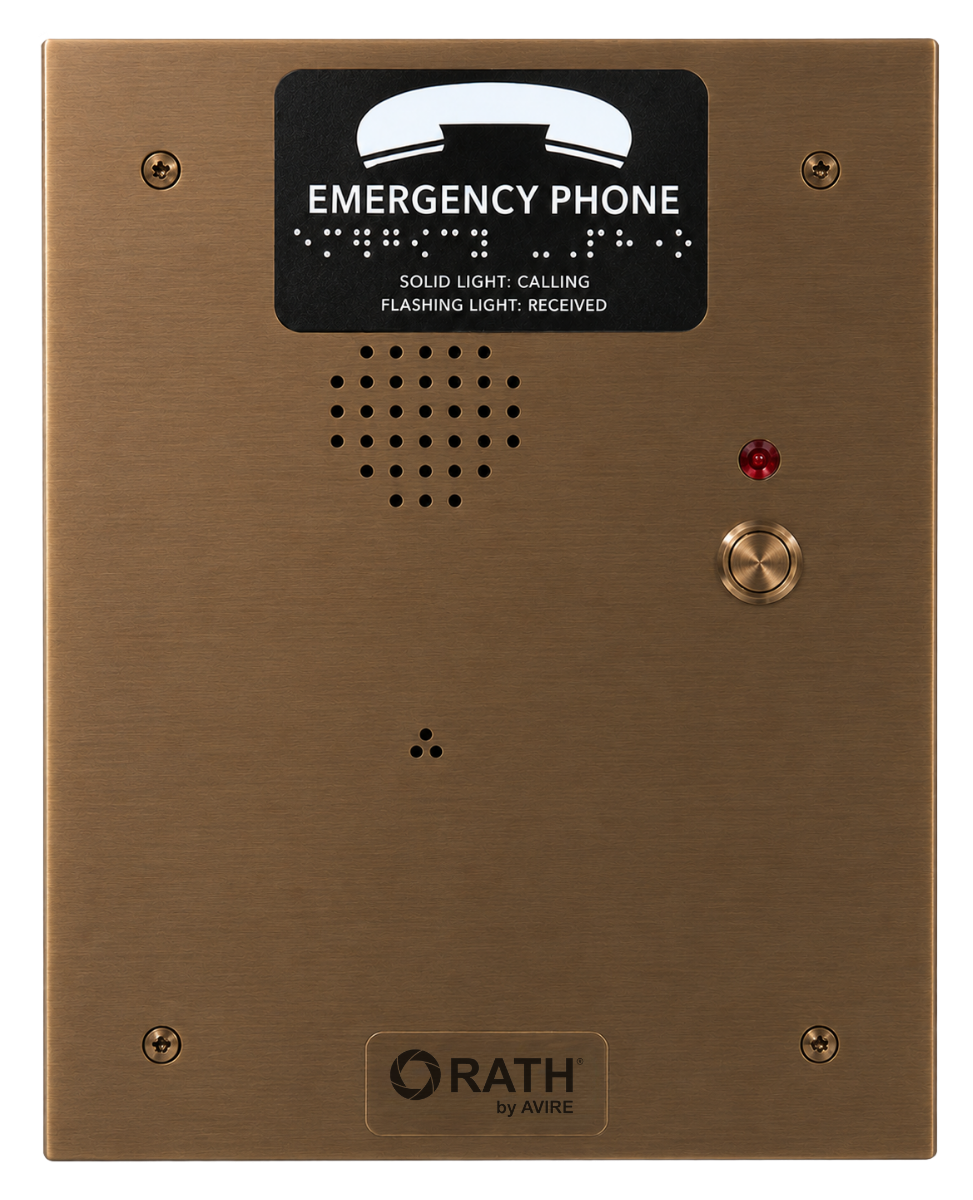

Image of 2400-808NSPImage of 2400-808NMPImage of 2400-808SSPC2

Surface Mount

2400-805SPM2400-805SP2400-805RP2400-805SSPC2
Stainless Steel,
Mushroom Button,
No Cover		Stainless Steel,
Standard  Button,
No Cover		Red,
Standard  Button,
No Cover		Stainless Steel,
Standard  Button,
Protective Cover

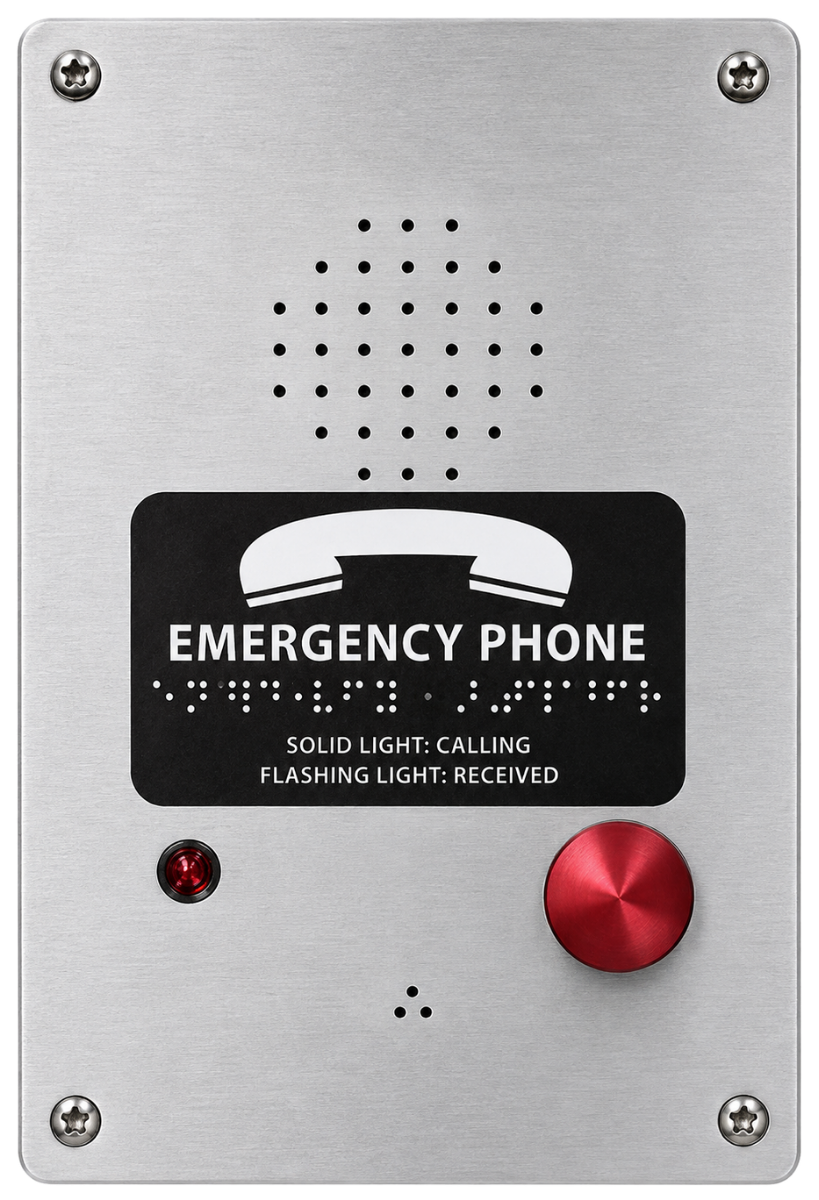

Image of 2400-805SPM

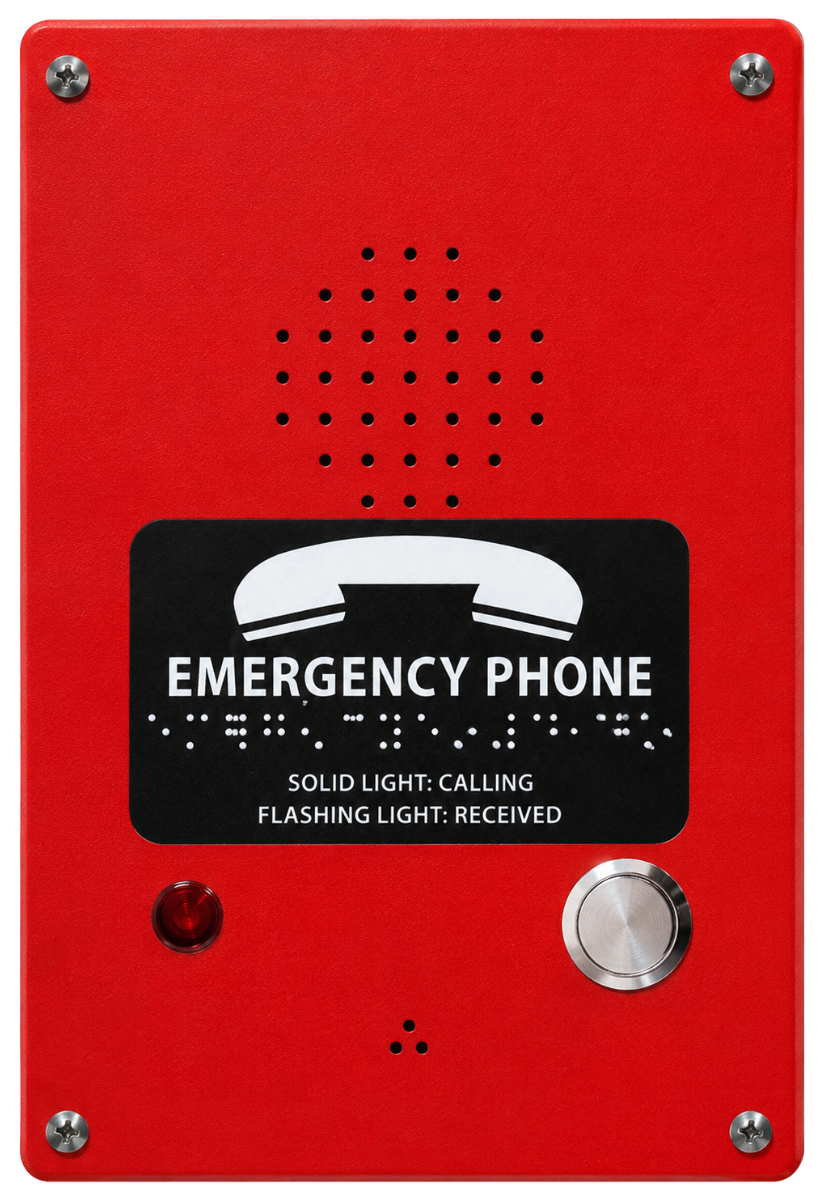

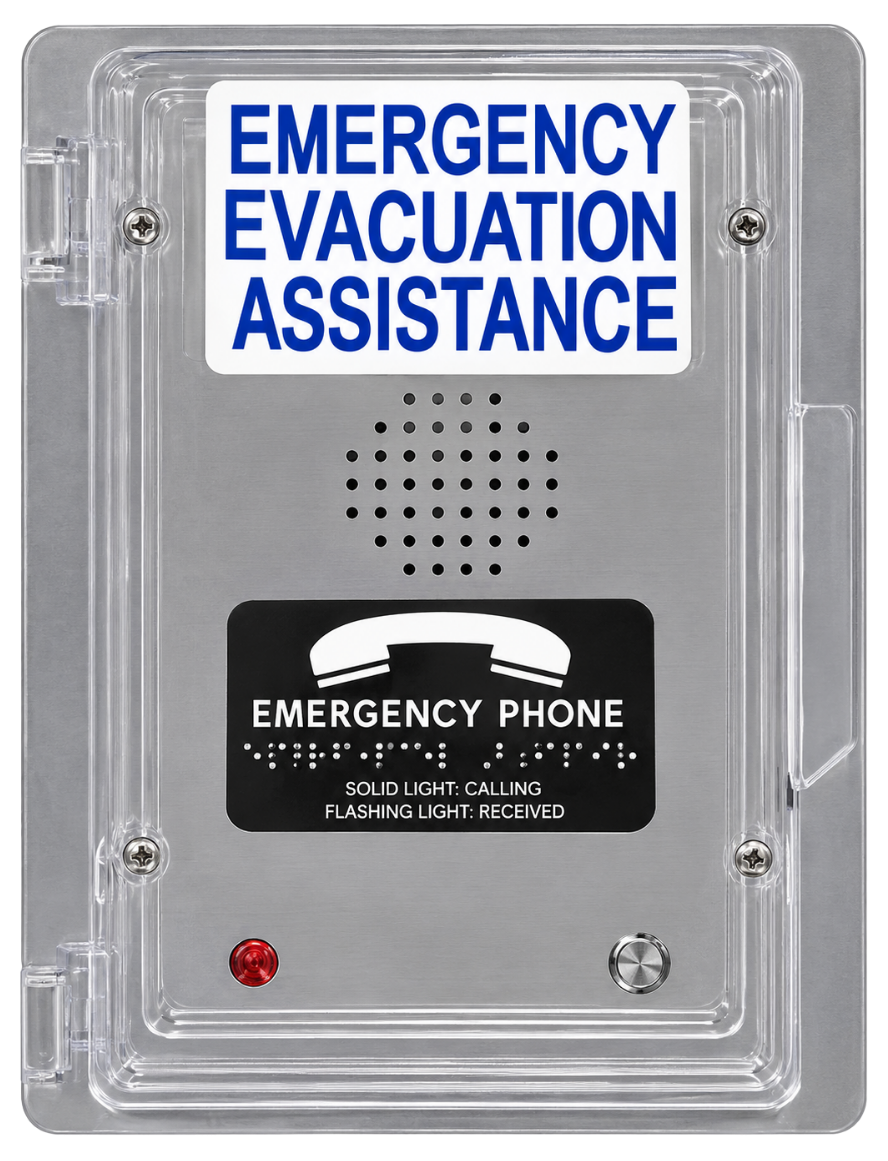

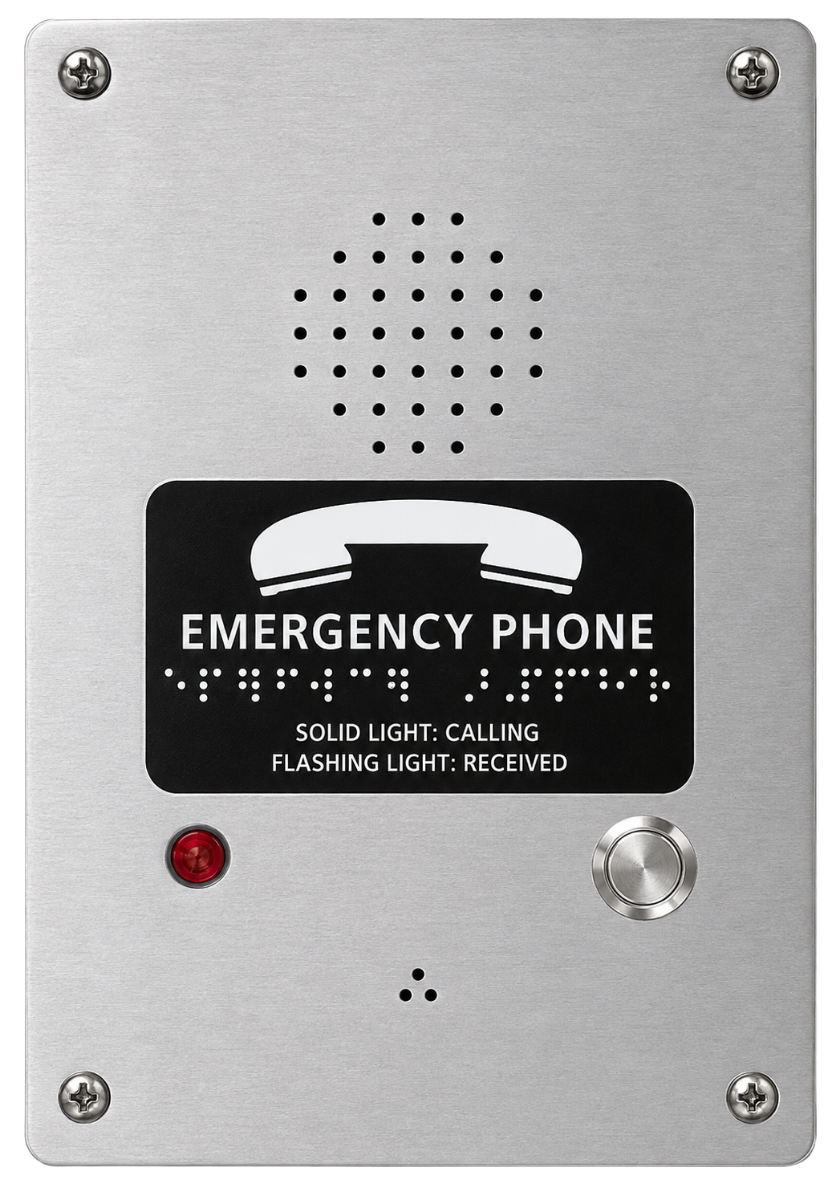

Image of 2400-805SPImage of 2400-805RPImage of 805SSPC2

Exterior Rated

2400-805LP2400-805LPC1
NEMA 4 Rated Red
Fiberglass		NEMA 4 Rated Red Fiberglass
with Protective Cover

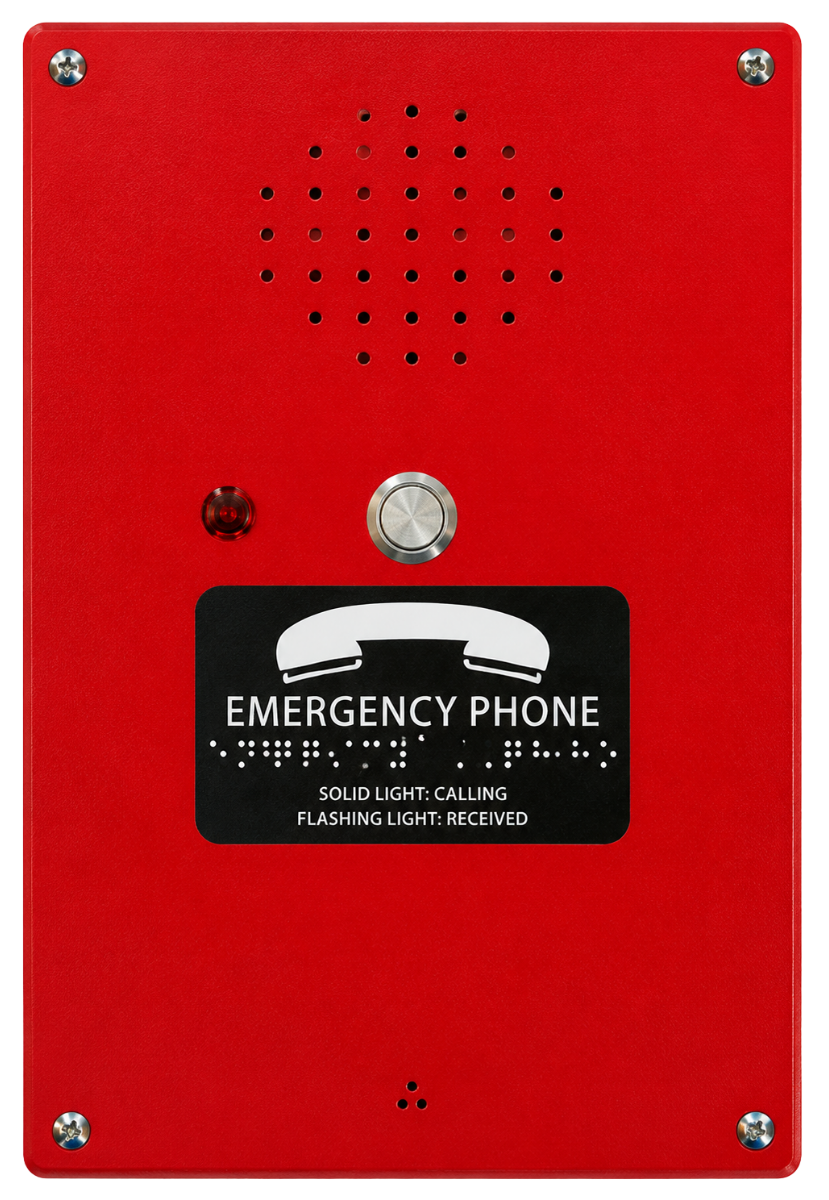

Image of 2400-805LP

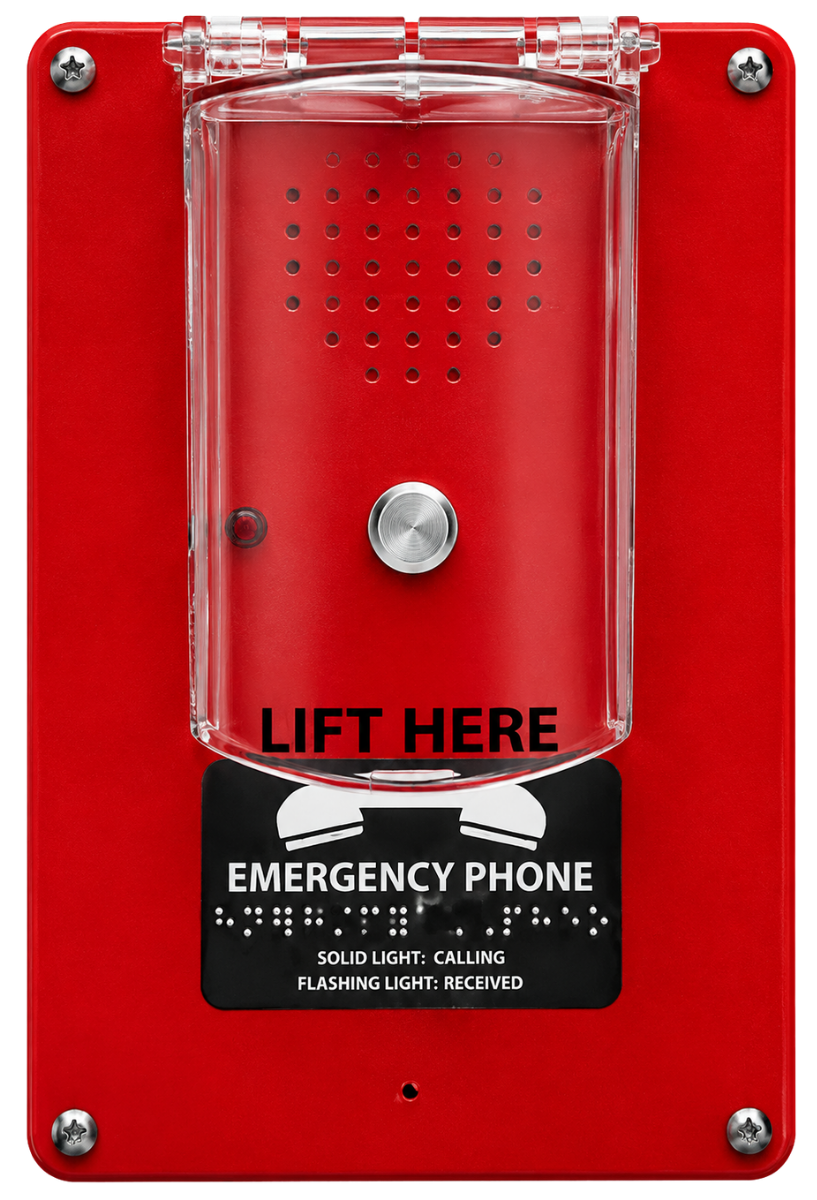

Image of 2400-805LPC1

Files and Resources

Datasheet_Analog Command Center_2400-808 Series
Data Sheets
Download
Datasheet_Analog Command Center_2400-805 Series
Data Sheets
Download
Datasheet_Analog Command Center_2400-805LP Series
Data Sheets
Download
Area of Refuge Mounting Guide
Install Guides
Download
Flush-Mount Call Box with Cover 2400-808SSPC2 CAD Drawing
Specifications
Download
Flush-Mount Call Box 2400-808NSP CAD Drawing
Specifications
Download
Surface-Mount NEMA-Exterior Rated Call Box with Cover 2400-805LPC1CAD Drawing
Specifications
Download
Surface-Mount Call Box with Cover 2400-805SSPC2 CAD Drawing
Specifications
Download
Surface-Mount NEMA-Exterior Rated Call Box 2400-805LP CAD Drawing
Specifications
Download
Surface-Mount Call Box 2400-805SP CAD Drawing
Specifications
Download
Series Detailed RP8500LPEXP_2400 Programming Manual
Install Guides
Download
