Photoluminescent Wall Signs

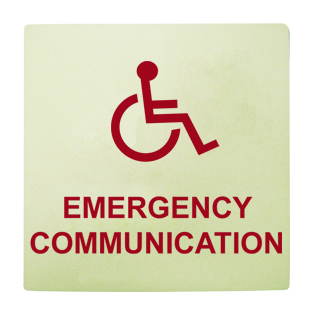

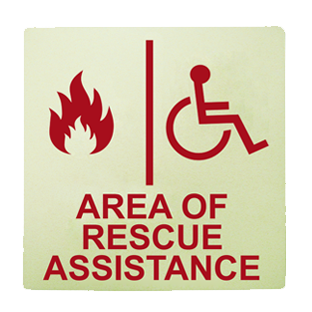

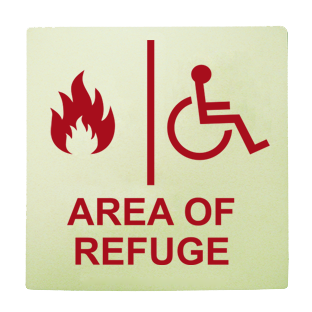

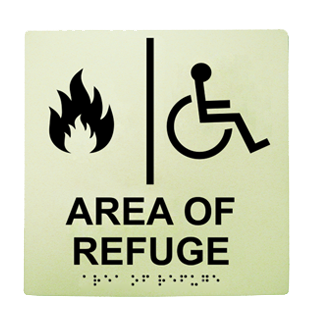

 Area of Refuge Sign Model 7041 Dimensions: 7-3/4″ H x 7-3/4″ W  |  Area of Refuge Sign with Braille Model 7046 Dimensions: 7-3/4″ H x 7-3/4″ W |  Emergency Communication Sign Model 7041E Dimensions: 7-3/4″ H x 7-3/4″ W |  Area of Rescue Assistance Sign Model 7085 Dimensions: 7-3/4″ H x 7-3/4″ W |
- Peel and stick for easy installation
- Sign should be mounted above 60″ but below 80″ from floor to top of sign
- Material is listed under UL 1994 After being exposed to 1 foot candle of light for 60 minutes, a minimum luminance shall be 30 millicandelas
- Photo Luminescent Material Specifications:
- Base material is PVC and a non-toxic pigment is added to create the photoluminescent effect
- Material is listed under UL 1994
- After being exposed to 1 foot candle of light for 60 minutes, a minimum luminance shall be 30 millicandelas per square meter at 10 minutes and 5 millicandelas per square meter after 90 minutes
- Also meets IBC 2015 Section 1025.4 and New York Local Law 24
- Typical material life expectancy is 25+ years
- After being exposed to 1 foot candle of light for 60 minutes, a minimum luminance shall be 30 millicandelas per square meter at 10 minutes and 5 millicandelas per square meter after 90 minutes
- Warranty: 2 years

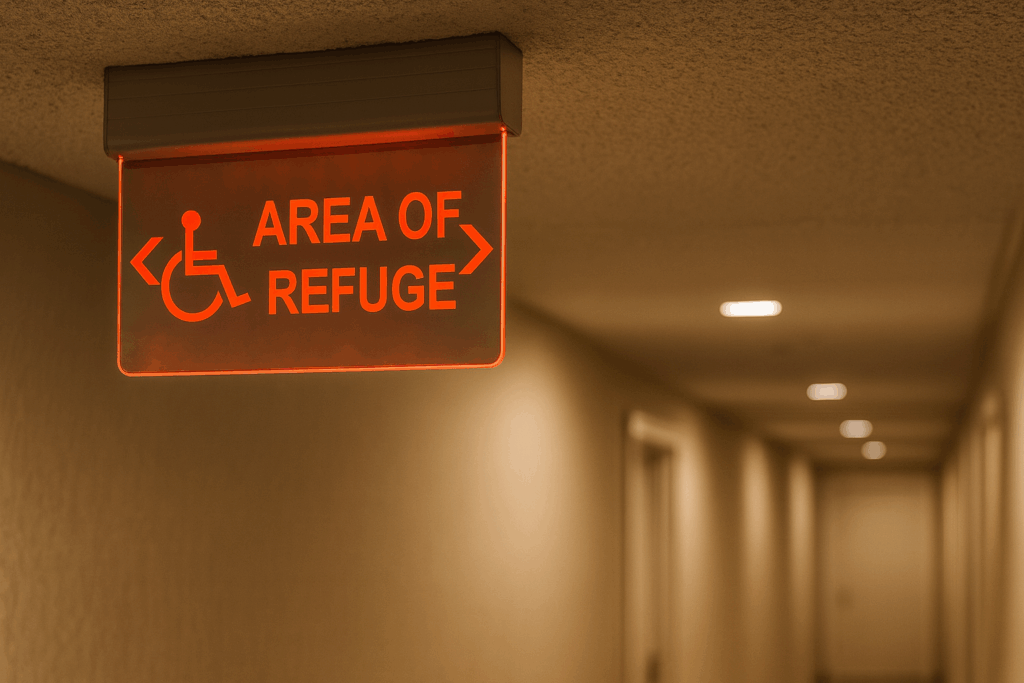

Illuminated Wall Signs

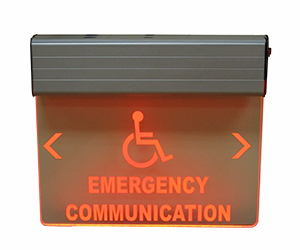

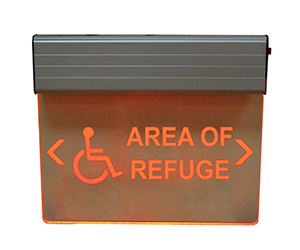

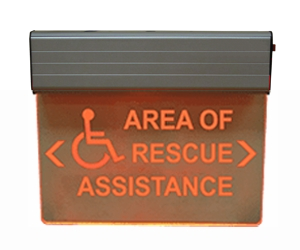

 Area of Refuge Illuminated Sign Models 7050 (Single Sided) 7050D (Double Sided) Dimensions: 10.5″ H x 14″ W x 3″ D |  Emergency Communication Illuminated Sign Models 7050E (Single Sided) 7050ED (Double Sided) Dimensions: 10.5″ H x 14″ W x 3″ D |  Area of Rescue Assistance Illuminated Sign Models 7090 (Single Sided) 7090D (Double Sided) Dimensions: 10.5″ H x 14″ W x 3″ D |
- Power: 120/277vac (4w, 350mA)
- Voltage surge and short circuit protection
- Battery backup
- LED lights
- Constant uniform illumination
- Aluminum housing with acrylic surface mounts to any surface (4 screw holes)
- Sign should be mounted above 60″ but below 80″ from the floor to top of the sign
- Directional arrows included (set of 3)
- UL listed to meet UL 924, NEC, OSHA, NFPA, and Life Safety Code Illumination requirements
- Warranty: 2 years
