Aftermarket Systems

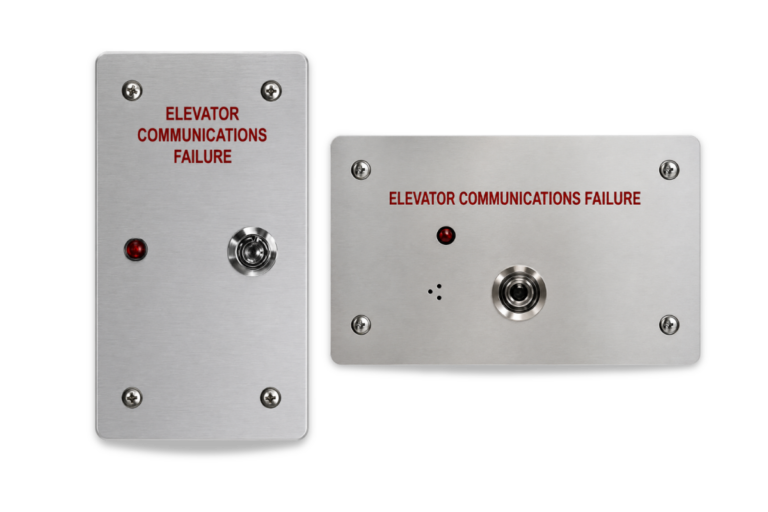

The 2100-ALARM provides a simple, fully functional solution to meet the 2010 and 2013 ASME codes. The code states that each elevator phone needs to check for an active phone line at least once in a 24 hour period. The 2100-ALARM checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world If an active phone line is not detected, an audible and visual alarm at the main landing panel is activatedA key switch is used to silence the audible alarm If the phone line has not been re-established within a 24 hour period, the audible will resound

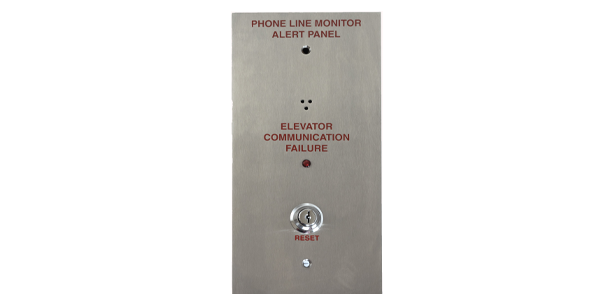

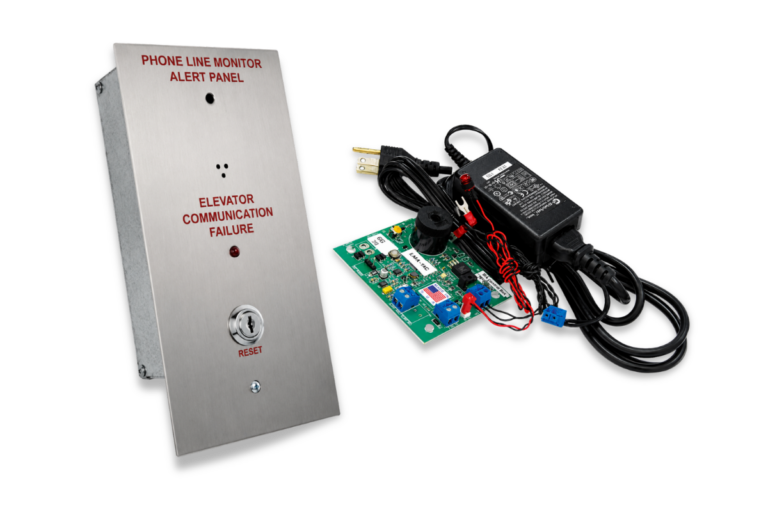

Designed to work with our EMS phones. The Phone Line Monitoring Alert Panel meets the ASME / B44 2009 and 2010 code that requires audible and visual signal in the lobby in the event of phone line failure. When used with our phones, that have the phone line monitoring option, the LMA unit completes the system. The 2100-ALARM checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world If an active phone line is not detected, an audible and visual alarm at the main landing panel is activatedReset allows audible signal to be silenced with standard J200 keyResets automatically when phone line is restored

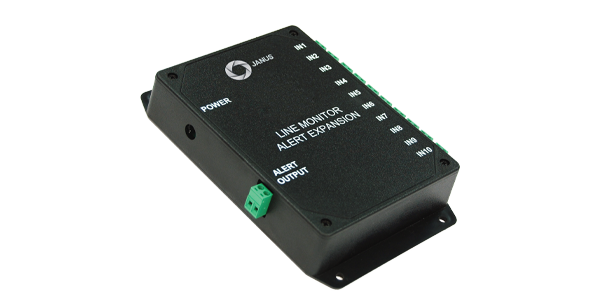

If more than one elevator phone needs to be linked to the LMA panel, an LMX (Line Monitoring Expansion) unit can be mounted in the machine room which will allow up to ten elevator phones to be connected Provides unlimited expansion when using multiple LMX units Includes optically isolated interface to protect all phones and LMA panel Cost effective solution to interface multiple phones to LMA panel
