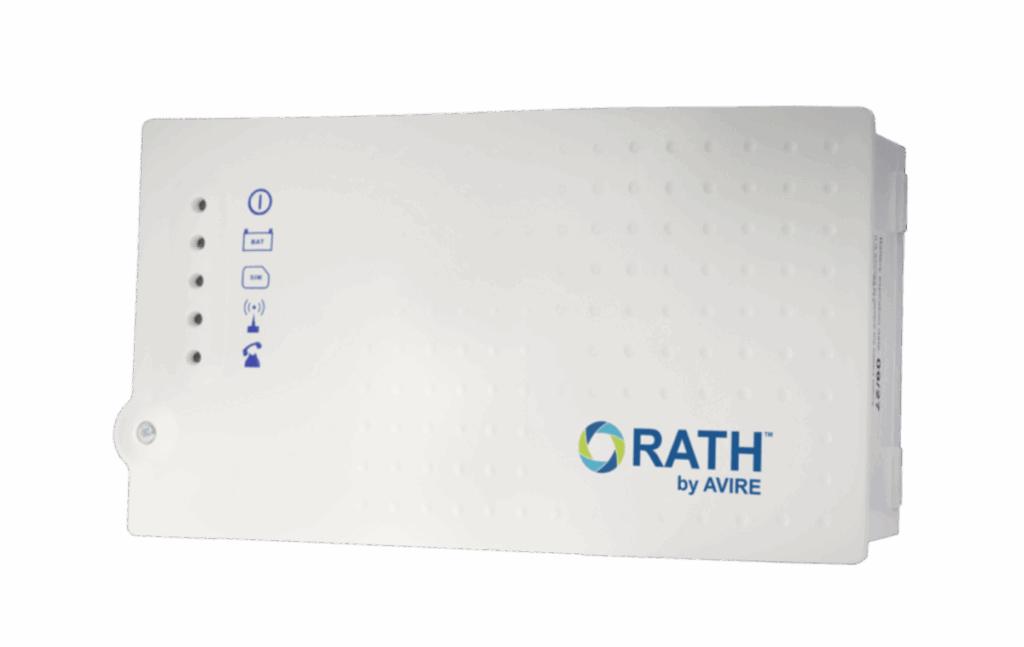

2100-LTEGSM4

Dimensions:

• 4.3″ H x 8.3″ W x 2.6″ D

Power Requirements:

• 120vac, 10VA

Wiring Requirements:

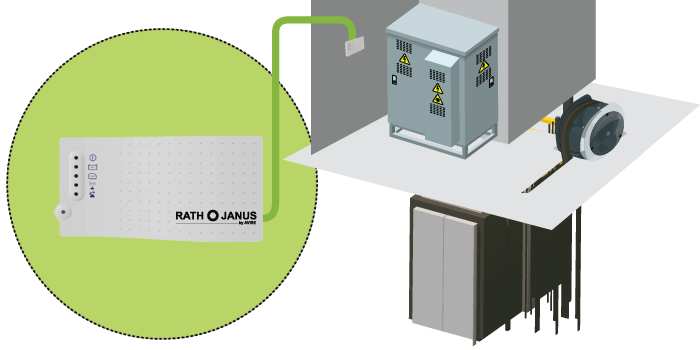

• Standard FXS port to allow a 2-wire connection from elevator phone, machine room phone, or lobby master
• Includes RS232 serial connector and CANBUS connector

Phone Capabilities:

• 2-Year Plan – ATT PLAN-2 (Sold Separately)
• Compatible with all Elevator Phones
• If used with a Janus phone that is not equipped with external power, part # POWPK-12VC must be ordered
• Use as a pass through for controller logic on a wireless platform

Additional Features:

• Includes antenna
• Internal Battery: 12v, 800mAh (meets ASME requirements for 4 hours talk time)

Voltage Rating:

• Idle: 110-120v, 50/60Hz, current draw 40mA
• Active: Current draw 80mA

Warranty:

• 2 years
