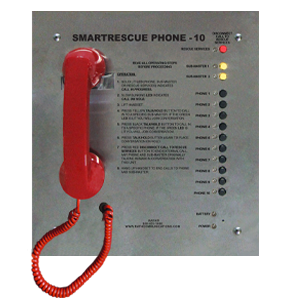

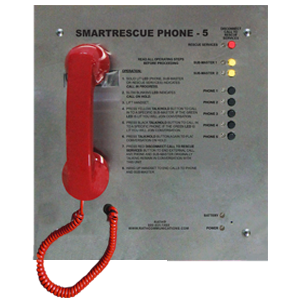

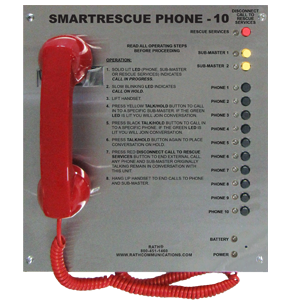

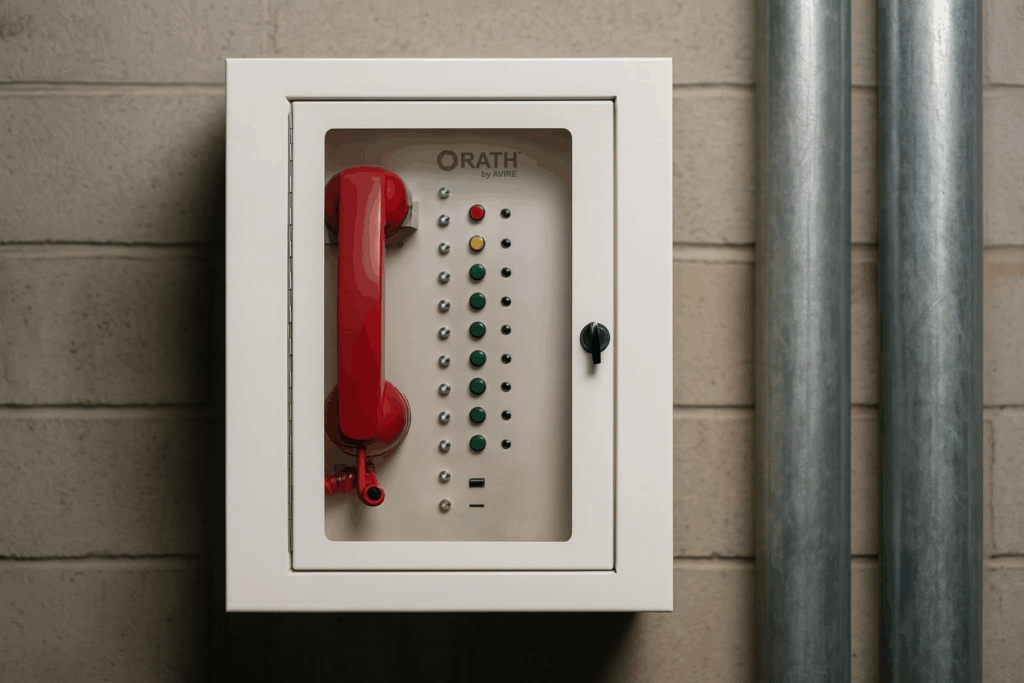

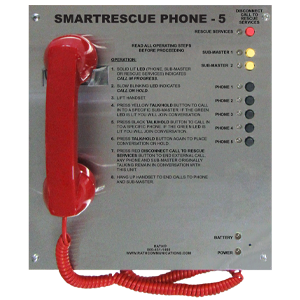

SmartRescue System

Additional Compliance:

• Complies with Section 6.4 of UL 60950-1
• Conforms to UL Standard 2017 for Attendant Monitored Signaling Devices
• Volume control handset meets ADA requirements

Power Requirements:

• Requires a single analog (POTS, PBX, or central office phone line) or digital phone line. If used on an IP or cellular network, you must purchase an additional interface device from RATH
• Designed for 120vac power

Wiring Requirements:

• Run twisted and shielded 4 wire set from each SmartPhone to SmartRescue unit and one standard phone line to the outside world

Phone Capabilities:

• Telephone Line Voltage: 24V-48V

Additional Features:

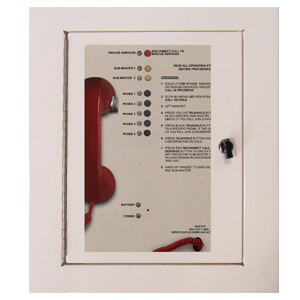

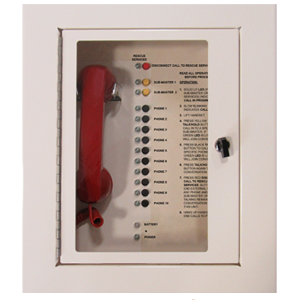

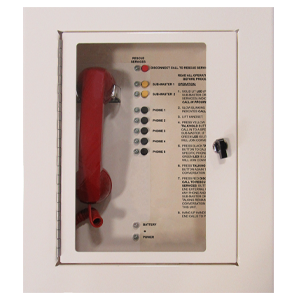

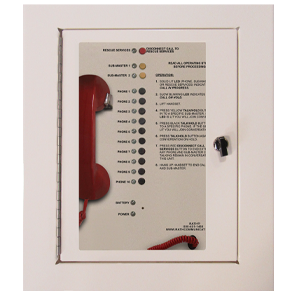

• Cabinet features twist lock closure for use with Fireman’s lock (not provided)
• Passively monitor communications between elevators and the outside world via the LEDs
  • Solid lit LED indicates there is an emergency call in progress
  • Slow blinking LED indicates there is a call on hold
• Audible alert when elevator initiates a call to SmartRescue
• Includes relay contact that trips if any SmartPhone has been activated
• The SmartRescue is able to:
  • Call into all or individual elevators as needed
  • Join existing conversations between cars and outside world
  • Hang up and original conversation will continue
  • Terminate outside world so it is only talking to the elevator or terminate the call with all parties entirely

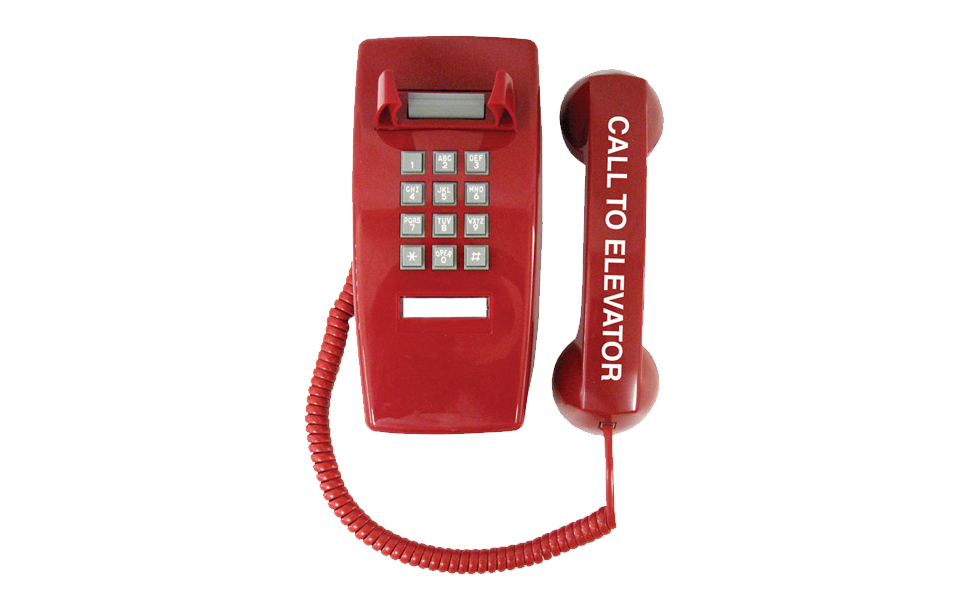

• For additional onsite communication, use the SmartRescue MachineRoom Phone 2300-630SM in the machine room or other installation location to all other devices connected to the system

Warranty:

• 2 years
