3D Door Detectors

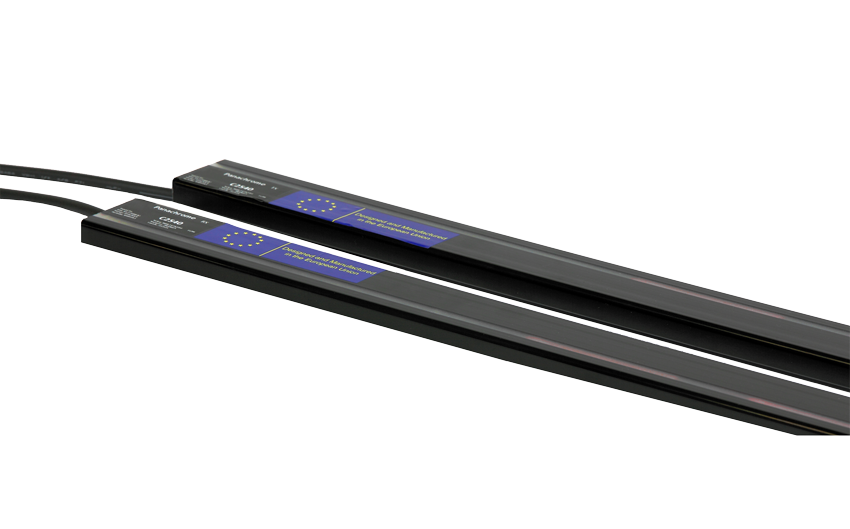

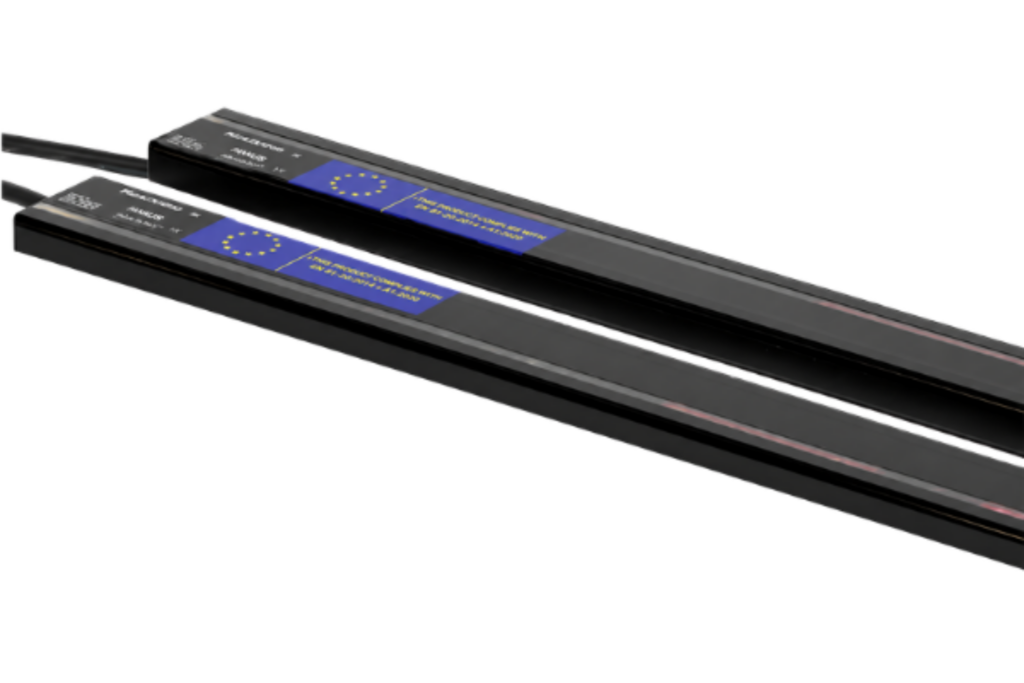

Panachrome 3D
Compliant with
Overview
The Panachrome 3D takes elevator safety to the next level by combining the trusted reliability of infrared technology with the added dimension of 3D detection.
This system not only ensures the safety of passengers entering and exiting the elevator but also enhances their experience with 154 intuitive beams with red and green indicators and an optional voice to indicate door opening and closing. This unique combined system is an effective solution for sites where passenger traffic is high or where additional safety measures are required.
This system not only ensures the safety of passengers entering and exiting the elevator but also enhances their experience with 154 intuitive beams with red and green indicators and an optional voice to indicate door opening and closing. This unique combined system is an effective solution for sites where passenger traffic is high or where additional safety measures are required.
Key Features:
- 3D Infrared Detection: While traditional infrared systems detect objects in their direct path, the Panachrome 3D offers an extended field of view, providing a more comprehensive safety net for passengers
- Visual Indicators: Equipped with green and red LED indicators, the Panachrome 3D provides clear visual cues to passengers. The green flashes signal the doors are opening, while the red flashes indicate they are closing, adding an extra layer of safety and clarity.
- Improved Efficiency: By reducing false triggers from ambient light or static objects, the Panachrome 3D ensures that elevator operations remain smooth and efficient
- Versatile Applications: Whether it’s a new installation or an upgrade, the Panachrome 3D seamlessly integrates with various elevator designs and systems
Additional Features:
- Complies with the requirements of the Americans with Disability Act (ADA)
- Colored red/green indicators highlight door movement
- The 3D detection zone covers from just above floor level to 65″ and the detection range is equal to approximately half the door separation
- Dense infrared 154 beam safety edge
- Suitable for center opening and side opening doors
- Voice option available
- Self-drilling screws make the product quick and easy to install
- Power reduction software prolongs the life of the safety edge
- Typical applications include hospitals, hotels, corporate office buildings, luxury residential complexes, educational institutions and public transportation hubs
