Smart3D System
SMART3DSYSTEM
Compliant with
Overview

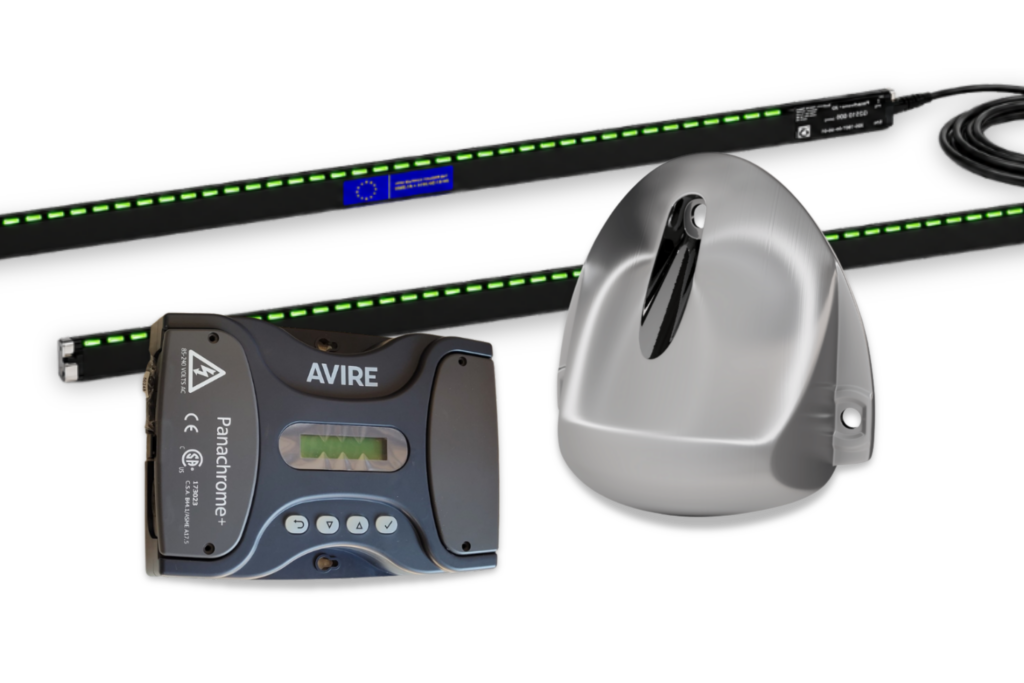

The JANUS® SMART3DSYSTEM combines Panachrome+ 2D detectors with the Smart3D sensor to deliver multi-dimensional door protection that enhances passenger safety and improves detection performance in challenging elevator environments. The integrated 3D infrared and microwave technology helps reduce false door triggers, detects passengers approaching the elevator while ignoring cross-traffic, and performs reliably in ambient light and reflective conditions.
Available in standard and slim detector profiles, the SMART3DSYSTEM supports both center- and side-opening door configurations and provides clear red and green visual indicators to show door movement and detection status.
Available in standard and slim detector profiles, the SMART3DSYSTEM supports both center- and side-opening door configurations and provides clear red and green visual indicators to show door movement and detection status.
Key Features:
- Full-System, Multi-Dimensional Sensing: Combines Panachrome+ 2D detection with Smart3D sensing for enhanced passenger protection at the door opening.
- Reduced False Triggers in Real-World Conditions: Uses modern 3D infrared and microwave technology to reduce nuisance door triggers and improve overall performance.
- Approach Detection that Ignores Cross-Traffic: Detects passengers moving toward the elevator while filtering out cross-traffic near the entrance.
- Clear Visual Status Indicators: Red and green indicators provide straightforward visual signals of door movement and system activity.
- Works with Center- and Side-Opening Doors: Supports common elevator door configurations for broad application coverage.
- Two Detector Profile Options for Retrofit Flexibility: Available as SMART3DSYSTEM (1.7″) or SMART3DSYSTEM-SLIM (0.4″) to fit various door configurations and space constraints.
- Reliable Performance in Difficult Lighting and Reflective Environments: Designed to perform consistently in ambient light and reflective elevator surroundings.
- Code-Aligned for Modern Requirements: Designed to support compliance with ASME A17.1 2019 / CSA B44-19.
