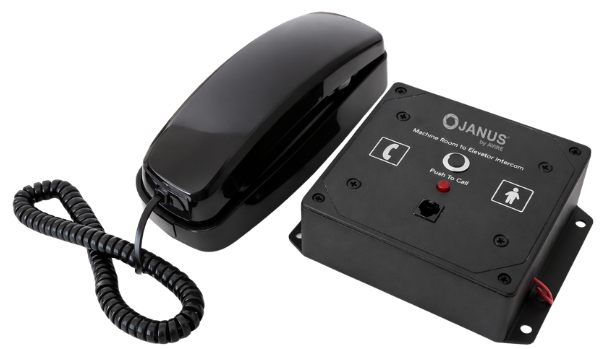

Machine Room Intercom with Handset MRI-HDSTL
Only available in
COMPLIANT WITH
Overview
Innovative technology enables the Machine Room Intercom to work with any type of ADA compliant elevator phone, allowing a low cost, easy to install retrofit solution.
Just plug in the included touch tone phone (HDSTL) to the provided jack, press the button and call the elevator phone.
Dimensions: 4 3/4″ H X 5 3/4″ W X 2 1/2″ D
Key Features:
- MRI eliminates the need for additional devices to be installed in the elevator car, by temporarily turning the existing elevator phone into an intercom
- The MRI splices directly into the existing connection of the elevator phone, making the installation process simple, fast and less labor intensive
- No additional wiring required
- No modification needed in the elevator car
- Supplied with standard 24vdc / 0.5A transformer
- Works with any existing elevator phone
- Built-in safety timeout
- When not in use, the MRI allows the ADA phone unrestricted access to the telephone line
Specifications:
- Weight: .5 lb.
- Operating current: 130mA
- Operating Voltage: 24vdc
- Operating Temp: 32° to 122° F
Relative Humidity: Up to 95% (non-condensing)
Warranty: 2 years
