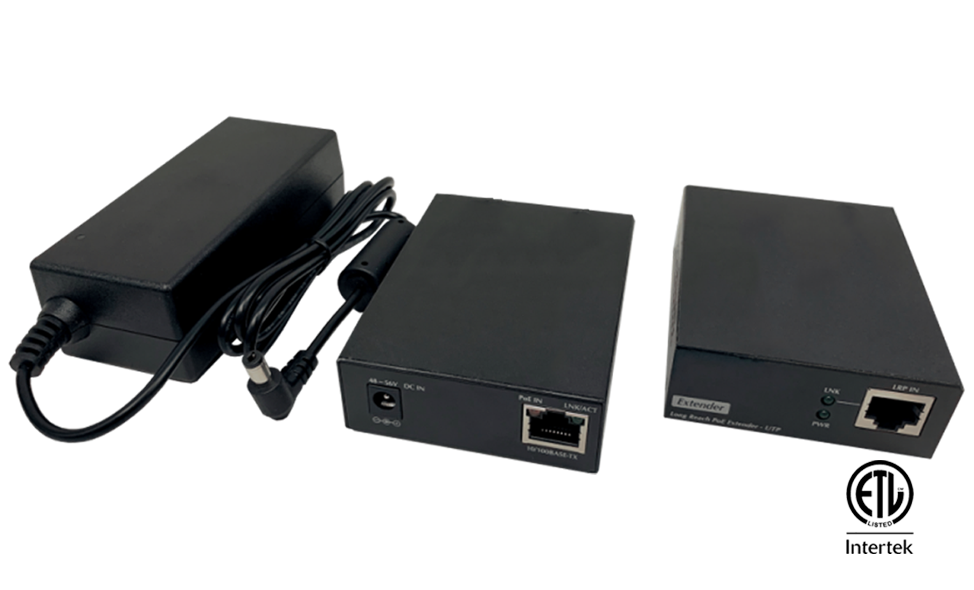

SmartView Ethernet Extenders 2100-SVE

Dimensions:

• 1″ H x 3.7″ W x 2.75″ D

Power Requirements:

• Injector Power:56V-65W power adapter with dc jack included (120vac power cord). Requires backed up 120v source or RATH RP7700104S
• Extender Power: Supplies 1A to the SmartView Controller

Wiring Requirements:

Extender Wiring:

• Extends up to 1,640 feet over single pair of wiring between extenders (requires single pair, 18-24ga, shielded or unshielded)
• CAT5E with RJ45 connectors required from network switch and the SmartView Controller to each extender
• Main Unit (Injector) has LAN In (internet connection) and LRP Out (two wire connection)
• Remote Unit (Extender) has LRP In (two wire connection from main unit) and PoE Out (Ethernet connection to SmartView Controller)

Additional Features:

• Included RJ45 adapters for Interlink Cabling
• Supplies power and communication to the SmartView Controller

Specifications:

• Environmental: -49°F to 168°F (-45°C to 76°C)
• Mounting: Behind the Panel

Warranty:

• 2 years
