Overview

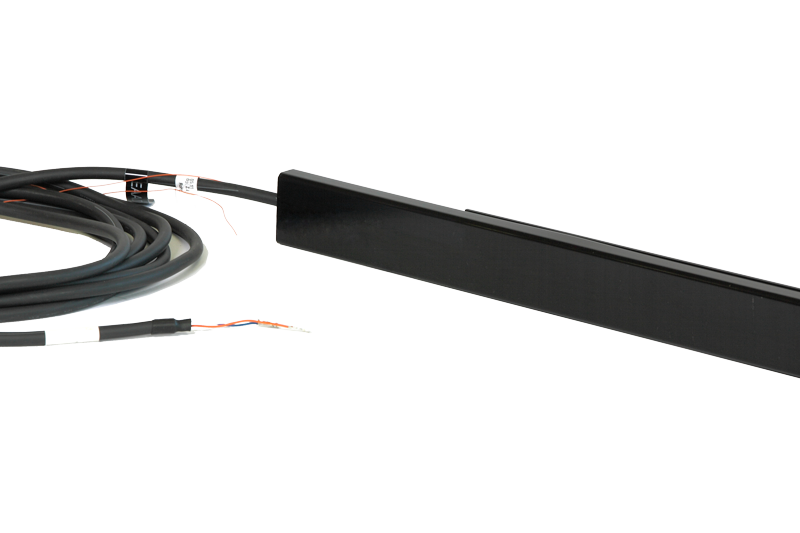

The E-Series 2D are our most versatile and cost-effective solution, designed to provide reliable door protection without compromising on safety. With its adaptable design, the E-Series caters to diverse elevator requirements, ensuring passengers are safeguarded during their journey.
Key Features:

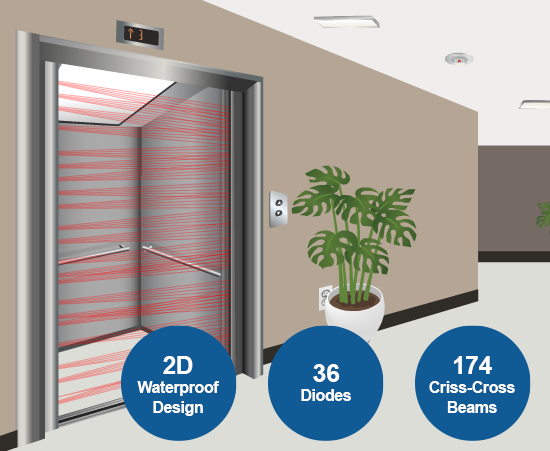

- Versatile Safety: Offers up to 36-diode versions, supporting up to 174 criss-cross beams for enhanced safety
- Compliance: The 36-diode version is adept at detecting a target of approximately 1.97 inches (50mm)
- Diagnostic Capabilities: Features a diagnostic LED visible through the lens, signaling triggers or potential system faults. In the event of a malfunction, the system communicates with the elevator controller to ensure door safety
- High Light Immunity: Designed to tolerate up to 100k lux of infrared content, ensuring exceptional light immunity and unparalleled reliability
- Flexible Design: Accommodates various elevator designs with its available profiles of approximately 0.39 inches (10mm), 1.26 inches (32mm), and 1.57 inches (40mm)
Additional Features:
- Designed for new and existing installations
- Suitable for dynamic or static installations
- Reduced installation time: no set up required, communication wire, or configuration needed
- Extended range of input voltages 11-42vdc to suit all applications
- Robust electronics
- Timeout software
- Diagnostic LEDs
- Auto Beam Disabling (ABD)
Files and Resources
E10 and E40_E-Series Edge Data Sheet
Datasheets
E10950ML-E Series_Installation Manual
Install Guides
2100-Eseries_Emergency Call Station Specifications
Specifications
Specifiers’ Corner
The Specifiers’ Corner is designed to provide Architects, Engineers, Contractors, Fire Marshals, Building Code Officials, Inspectors, AHJs, and end users with the essential information that may be needed for a project: Submittal Documents, Manuals/Wiring Diagrams, Data Sheets,CAD and Code Requirements
